Program Tags
To use the Controller tags that are automatically created, you need to
create the following Program tags for this example program.

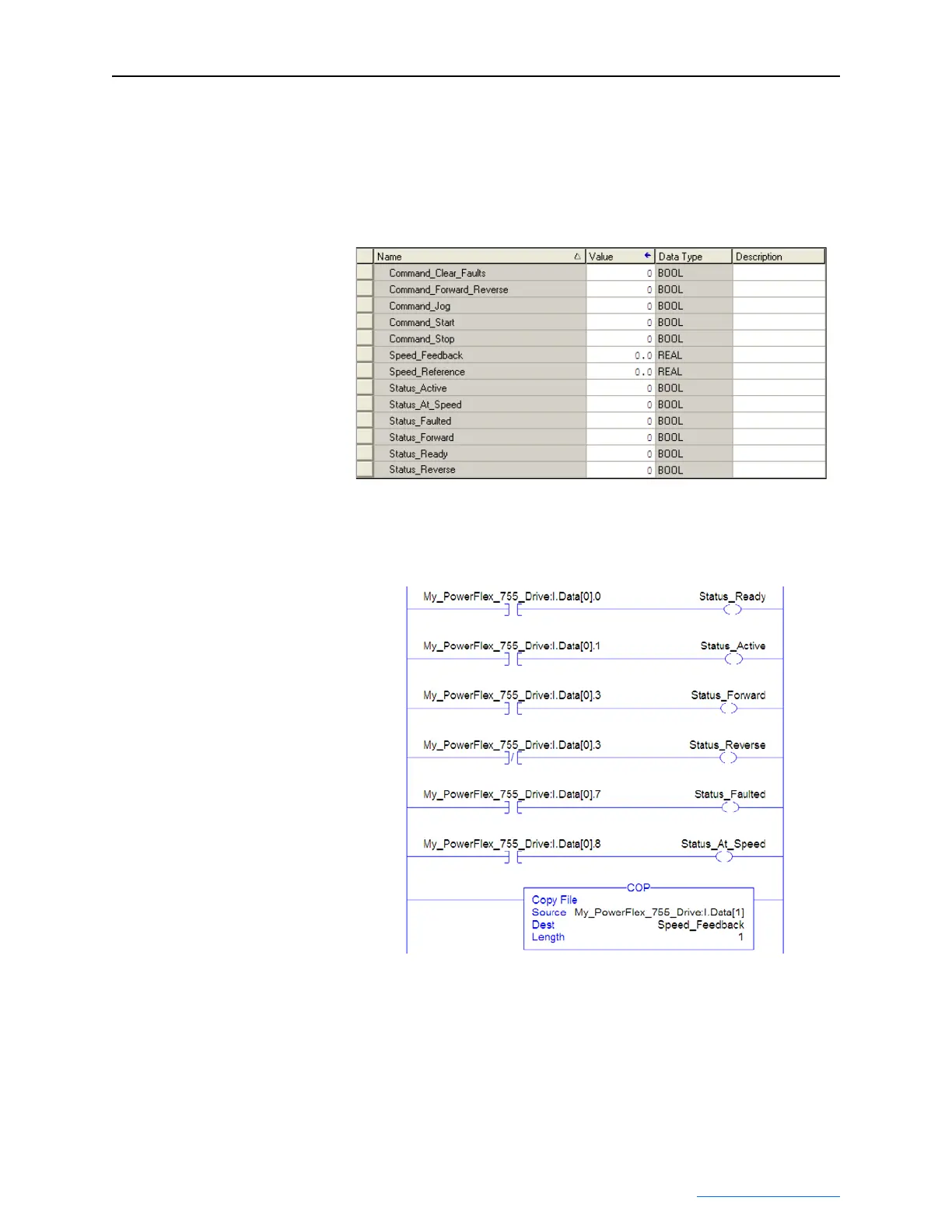

Figure 5.7 ControlLogix Program Tags for Generic Drive Profile Example
Ladder Logic Program
Figure 5.8 ControlLogix Example Ladder Logic Program Using Generic Drive
Profiles for Logic Status/Feedback
To Next Page
