5-12 Using the I/O
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P

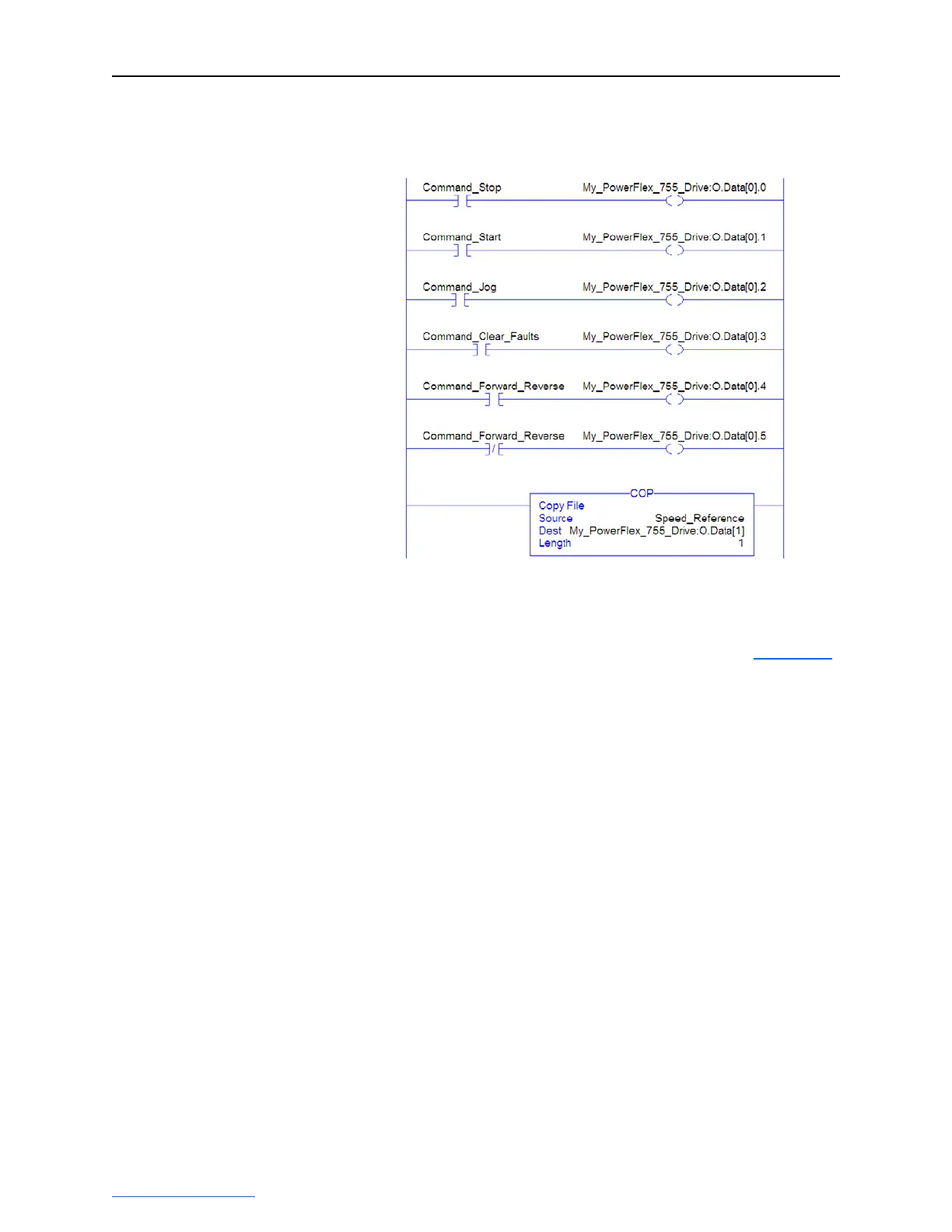

Figure 5.9 ControlLogix Example Ladder Logic Program Using Generic Drive
Profiles for Logic Command/Reference
Example Datalink Data
The Datalink data used in the example program is shown in Figure 5.10.
Note that to describe the parameters to which the Datalinks are
assigned, you may want to add descriptions to the automatically-created
generic controller tags or create User Defined Data Types (UDDT).
