Using the I/O 5-13
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P

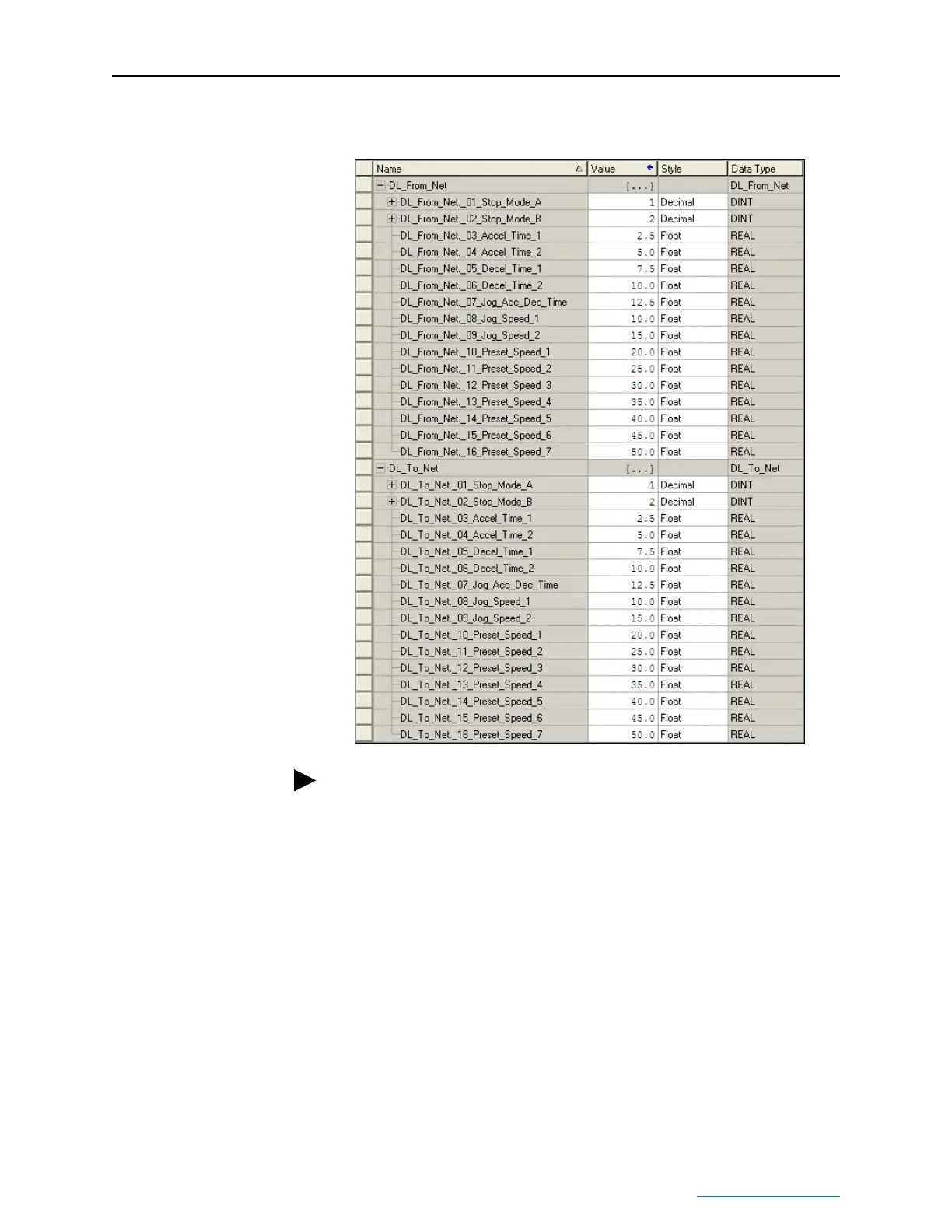

Figure 5.10 ControlLogix Example Datalinks for Ladder Logic Program Using
Generic Drive Profile
TIP: To determine the Data Type of a parameter, refer to the Data Type
column in the chapter containing parameters in the PowerFlex
750-Series AC Drives User Manual, publication 750-UM001.
