Configuring the I/O 4-9
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
6. Click OK on the Module Definition screen to save the drive and
adapter configuration and close the screen. The drive’s New
Module screen reappears.
7. On the New Module screen, click the Connection tab (Figure 4.11
).

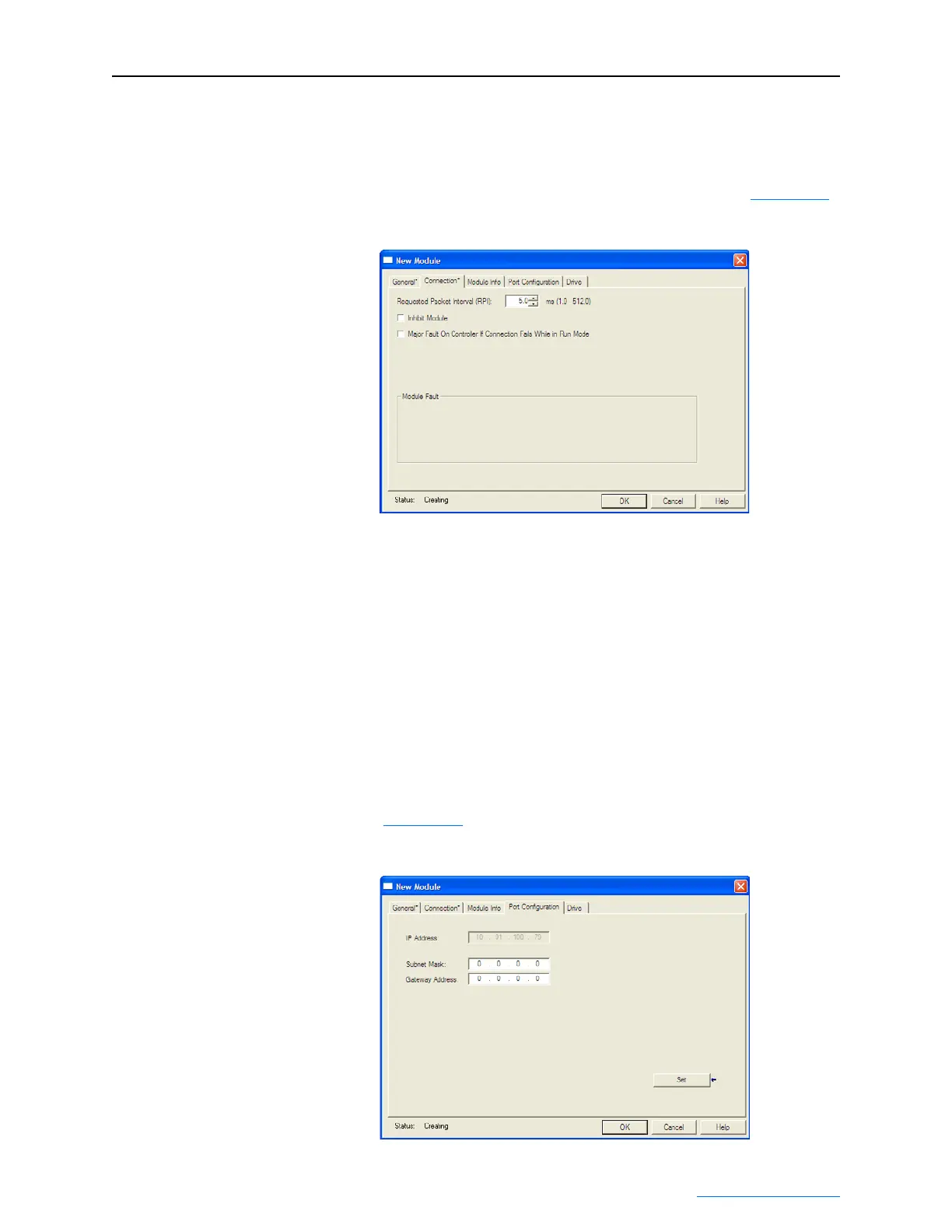

Figure 4.11 Connection Screen
8. In the “Requested Packet Interval (RPI)” box, set the value to 2.0
milliseconds or greater. This value determines the maximum
interval that a controller should use to move data to and from the
adapter. To conserve bandwidth, use higher values for
communicating with low priority devices.
The “Inhibit Module” box, when checked, inhibits the module from
communicating with the RSLogix 5000 project. When the “Major
Fault on …” box is checked, a major controller fault will occur
when the module’s connection fails while the controller is in the
Run Mode. For this example, leave the “Inhibit Module” and
“Major Fault On …” boxes unchecked.
9. On the New Module screen, click the Port Configuration tab
(Figure 4.12
).
Figure 4.12 Port Configuration Screen
To Next Page
