6.2 Conguration and rmware update via zLink
The most convenient way to congure the Z21 signal decoder is using the 10838 Z21 per LINK at the zLink interface. In this case, you
will not need either the programming button with the blink codes, nor do you have to deal with CV tables. Settings are made menu-
driven via the display and the Z21 per LINK keys.
On the next lines, you can activate or deactivate the option “RCN-213” (see also
Operation on control centres from other manufacturers) and RailCom
®
.
Of course, you can also change the number of signals.
The required signal conguration can be selected per signal in plain text.
1. First, select the rst, second or if applicable the third or fourth signal
under “Number”:.
2. Then select the required country, for example D, A, CH, NL, F or “-” for
“International” (standard conguration “Universal”, lighting, ...) under
“Country:”.
3. Finally, select the required signal conguration from a list under
“Cong:”.
You can check these settings and more in the “Status” menu item on the Z21 per LINK.
The Z21 per LINK also permits a connection with the PC or the Z21 App. In this way, the signal decoder can then also be congured or,
if applicable, the decoder rmware can be updated via the Z21 Maintenance Tool. You can also nd further information in the operating
instructions for the Z21 per LINK.

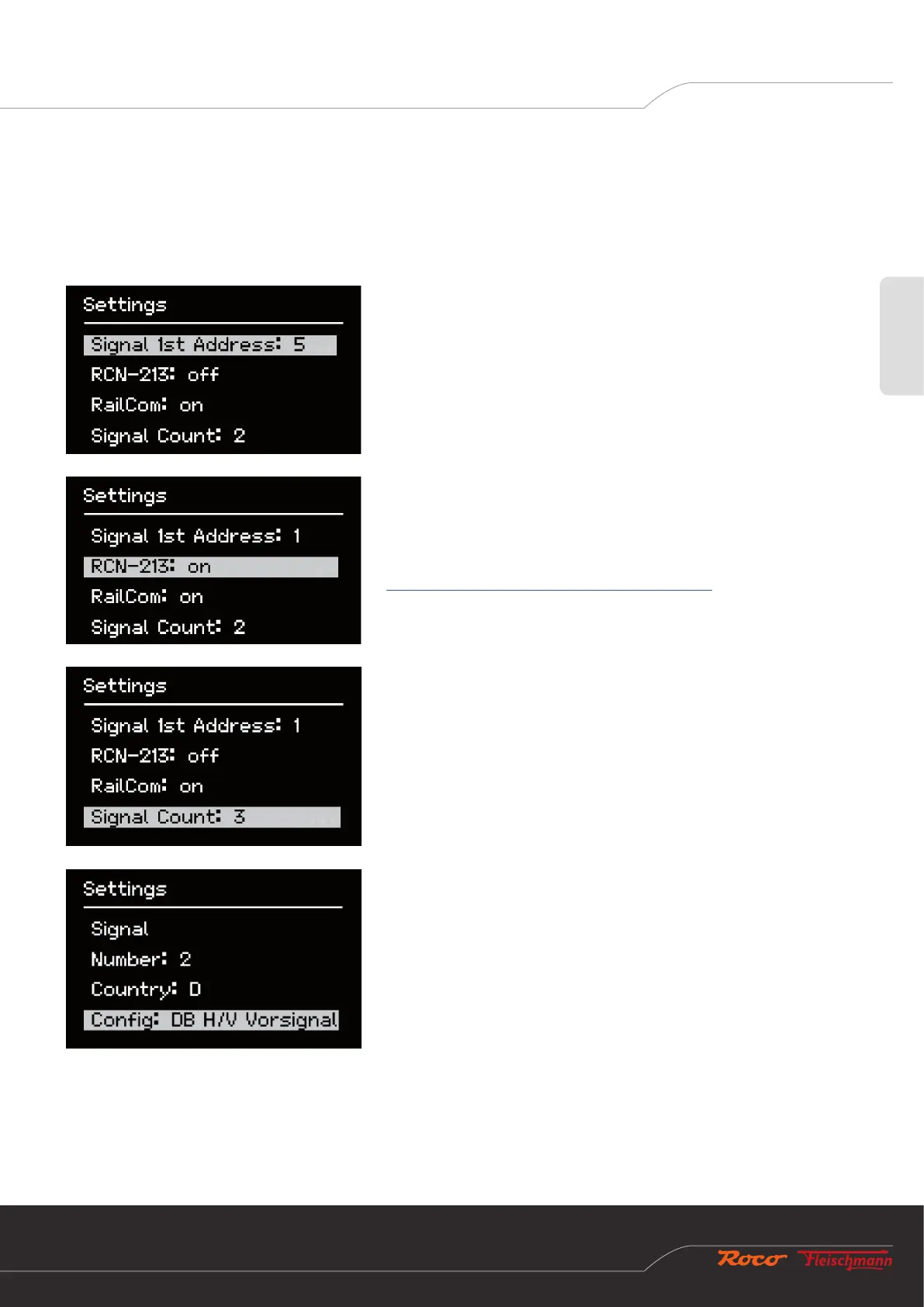

You can reach the decoder settings under the “Settings” menu item. There
you can select the rst signal address. Using the arrow keys, you can get to the
next line respectively.
