roco Z21 Signal Decoder User Manual

Model Railway Control Unit
WWW.Z21.EU
62
Signal aspects
For the columns DCC
basic
, see Switching commands in conventional DCC
basic
format, and for the column DCCext, see Switching com-
mands in the new DCC
ext
format and Z21.
The diagrams shown here only display a selection of possible signal screens. The examples are intended to explain the logic within
this signal conguration, and of course signal screens can also be connected and operated with a reduced number of lamps. The same
applies as for the prototype: do not switch a signal aspect if this is in principle available, but cannot be correctly displayed by the signal
actually connected because the lamp is not equipped. The user is responsible for only using expedient signal aspects which can actually
be presented.

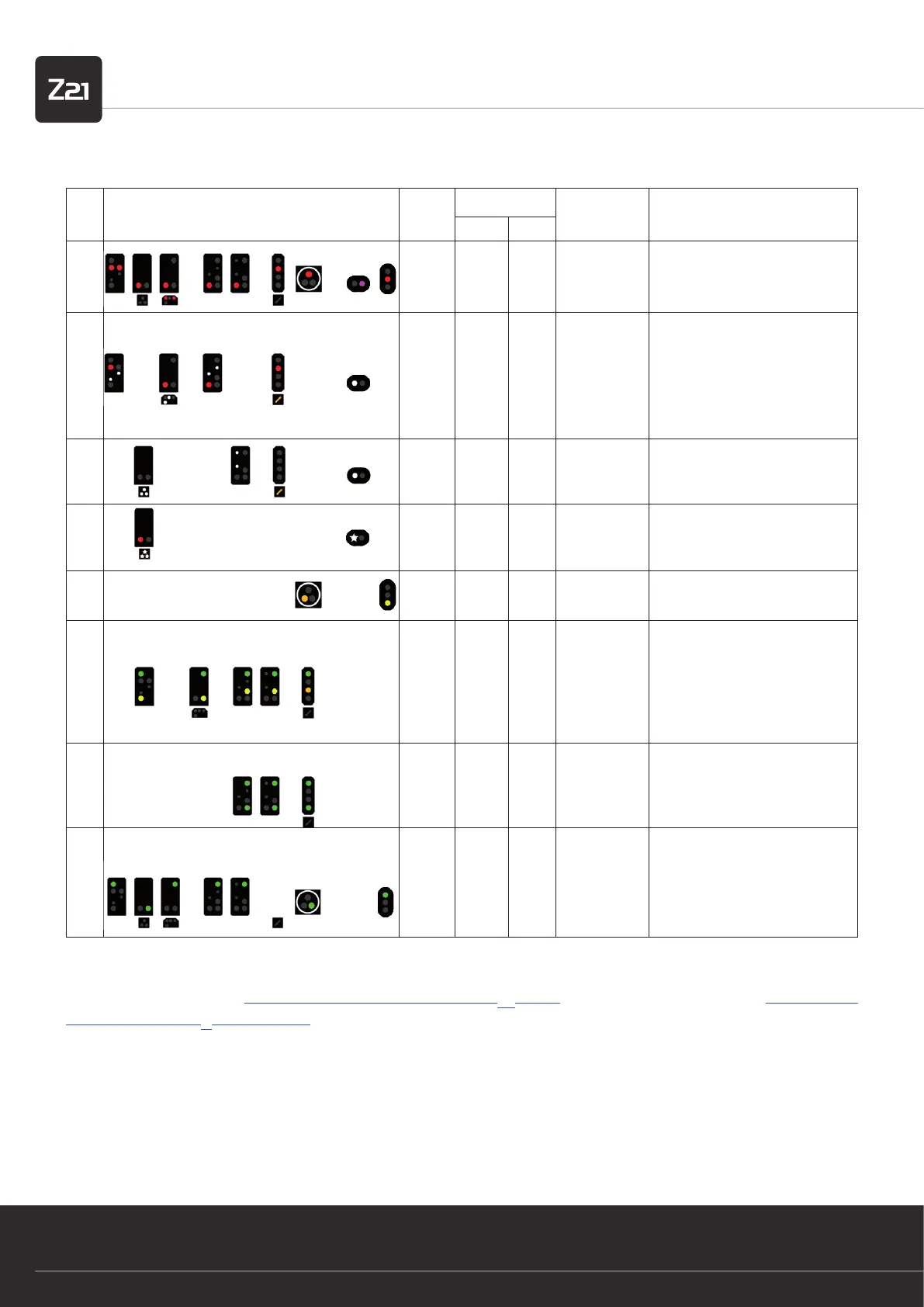

No. Image DCC
ext
DCC
basic
Name Description
Trigger Mode
1
0
0x00
1R Stop
Stop
SNCF: red Sémaphore S,
violet = Carré voilet Cv
2
65
0x41 2R Shunt go
Shunting signal (Sh1)
Shunting forbidden cancelled
Permission to pass by signal indi-
cating “Stop”
SBB: Auxiliary signal L.
SNCF: Feu blanc M
3
69
0x45
3G Substitution
Movement forbidden cancelled,
the red main lights are switched
off.
4
70
0x46
4G Blink
Flashing substitution signal, Zs8,
...
SNCF: Feu blanc clignotant (M)
5
68
0x44
4R Warning
Announces a stop aspect
SNCF: Avertissement A
6
4
0x04
2G Go 40
Proceed with speed limit (40
km/h)
Using terminal 6, an optional
direction (Zs2) or speed display
(Zs3) can be switched on as well.
7
6
0x06
3R Go 60
Proceed with speed limit (60
km/h)
Second green light, or speed dis-
play on terminal 7.
8
16
0x10
1G Go
Clear to proceed
Using terminal 6, an optional
direction (Zs2) or speed display
(Zs3) can be switched on as well.
SNCF: Voie Libre VL
