66

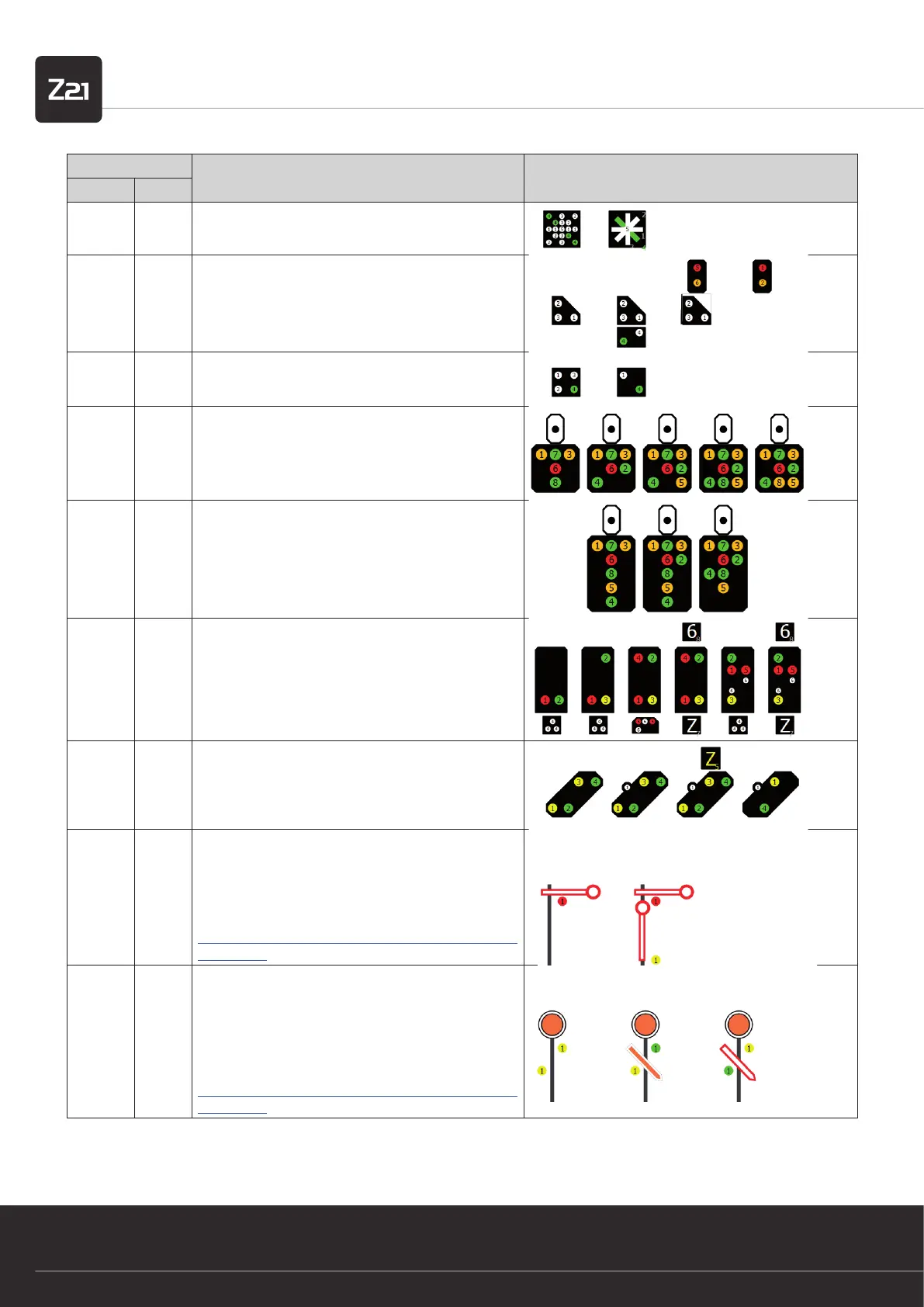

Signal-ID Name Image
decimal hex
198 0xC6 SBB hump yard signal
199 0xC7 SBB dwarf signal
Dwarf signal with departure permission (optional).
Mini-main signal with and without dwarf signal.
200 0xC8 SBB brake test, departure
Brake test with departure permission.
204 0xCC SBB System L Comb. small
Combined signal with square signal screen and up to
8 lamps.
205 0xCD SBB System L Comb. large
Combined signal with large signal screen and up to 8
lamps.
208 0xD0 DB H/V main signal
Main signal with optional additional signals Zs1, Zs2,
Zs3 or with stop signal.
209 0xD1 DB H/V distant signal
Distant signal or distant signal repeater, with optional
additional signal Zs2v or Zs3v as well as dark swit-
ching.
210 0xD2 DB semaphore main signal
Two or three-aspect semaphore main signal with light-
ing and double-assigned outputs for the coil drives.
Observe the information on semaphore signals under
https://www.z21.eu/en/products/z21-signal-decoder/
signaltypen
211 0xD3 DB semaphore distant signal
Two or three-aspect semaphore distant signal with
lighting and double-assigned outputs for the coil
drives.
Observe the information on semaphore signals under
https://www.z21.eu/en/products/z21-signal-decoder/
signaltypen
