Part Names and Functions
7

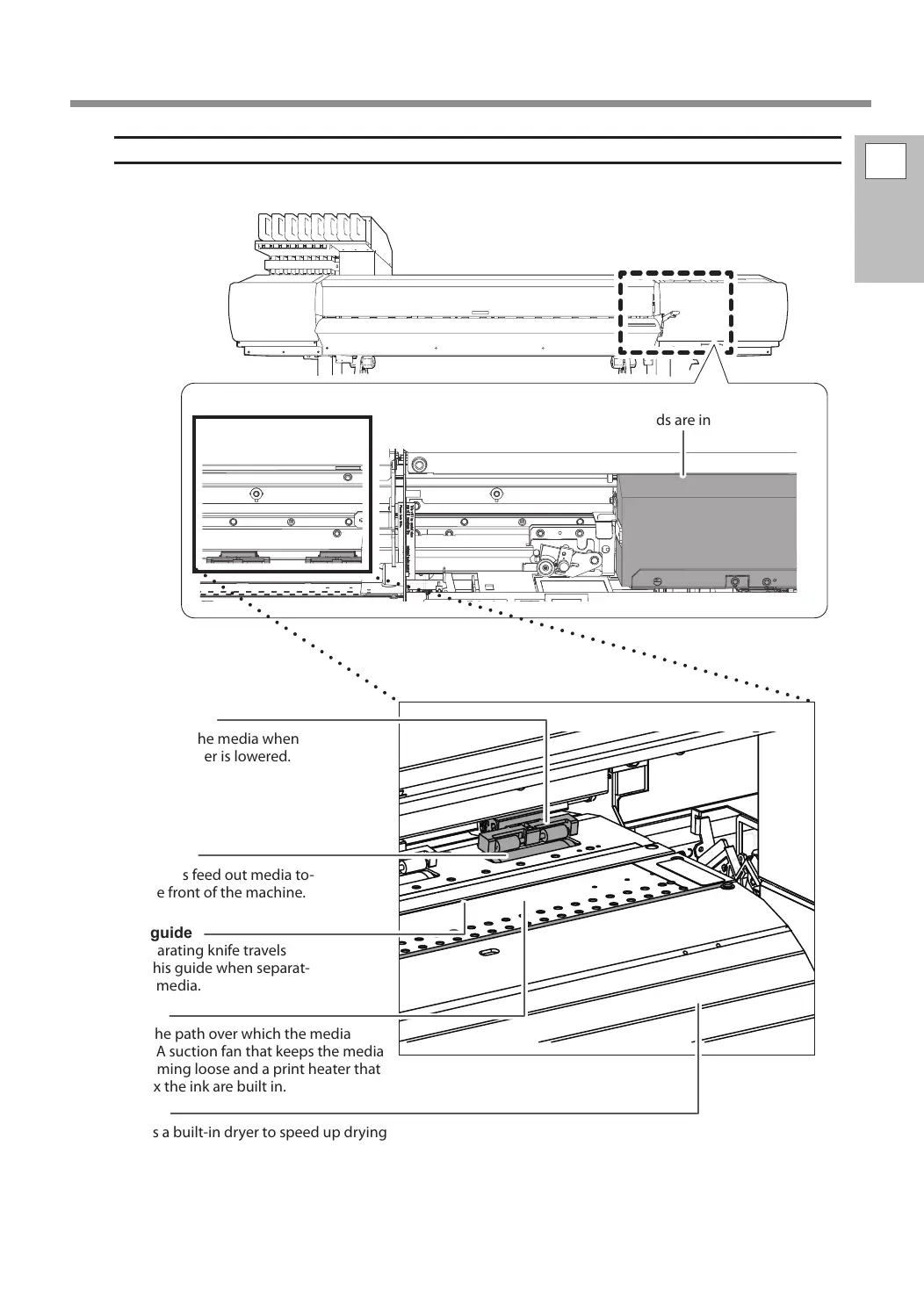

Front Cover Interior/Print Head Area
Print-head carriage
The print heads are inside this.
Pinch rollers
These clamp the media when
the loading lever is lowered.
Grit rollers
These rollers feed out media to-
ward the front of the machine.
Platen
This is the path over which the media
passes. A suction fan that keeps the media
from coming loose and a print heater that
helps x the ink are built in.
Knife guide
The separating knife travels
along this guide when separat-
ing the media.
Apron
This has a built-in dryer to speed up drying
of the ink.
