RootWave Pro User Guide

Overview of RootWave Pro

This section provides an overview of RootWave Pro and lists the

components.

About RootWave Pro

RootWave Pro treats weeds by forcing electric current though the

weed using a high voltage. The current flow causes a rapid rise in

temperature which damages the weed's cellular structure above and

below the ground. The weed can then be left to naturally

decompose.

The Treatment Lance targets the electrode tip at the weed's stem,

delivering a voltage up to 5,000 volts at 50 hertz.

When activated, the electrical energy provided by the Power

Module flows to the Treatment Lance, through the weed, through

the soil, into the Treatment Return and back to the Power Module.

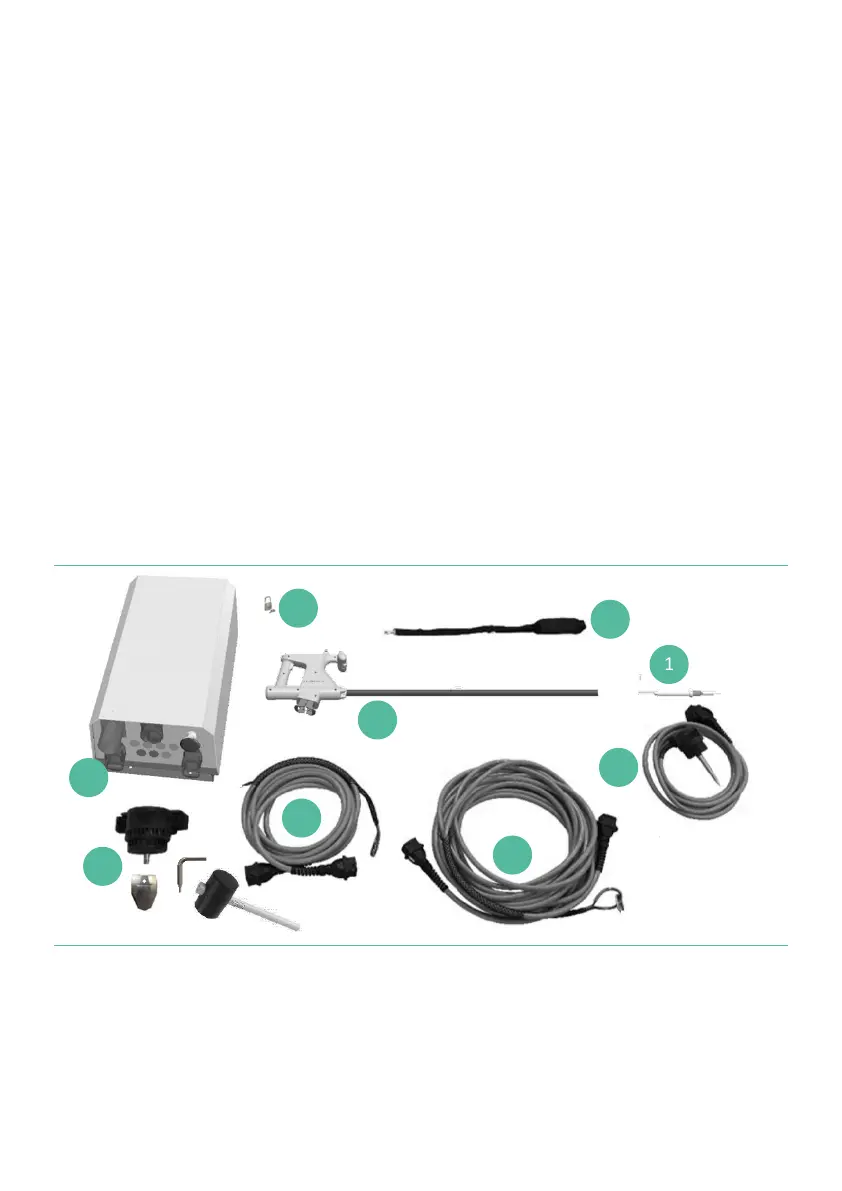

Figure 1 RootWave Pro components
