RootWave Pro PRO-001-3 - Figure 12 Shrouded Electrode Module

To Next Page

To Previous Page

RootWave Pro User Guide

Do not allow arcs to form when using the Shrouded Electrode as this

may damage the material. To reduce arcing reduce the voltage

setting H/M/L.

The Shrouded Electrode Module should be cleaned after use with an

alcohol wipe to prevent the build-up of carbon on the body and

around the electrode which can otherwise lead to accelerated wear.

The Shrouded Electrode Module is designed only for use the with

short T bar electrode provided. Do not modify to use with any other

electrode types.

 See section ‘Setting up the Treatment Lance’ on page 36 for

installation of the Shrouded Electrode Module.

 Contact your RootWave Pro supplier for a replacement Shrouded

Electrode Module if yours is showing signs of wear.

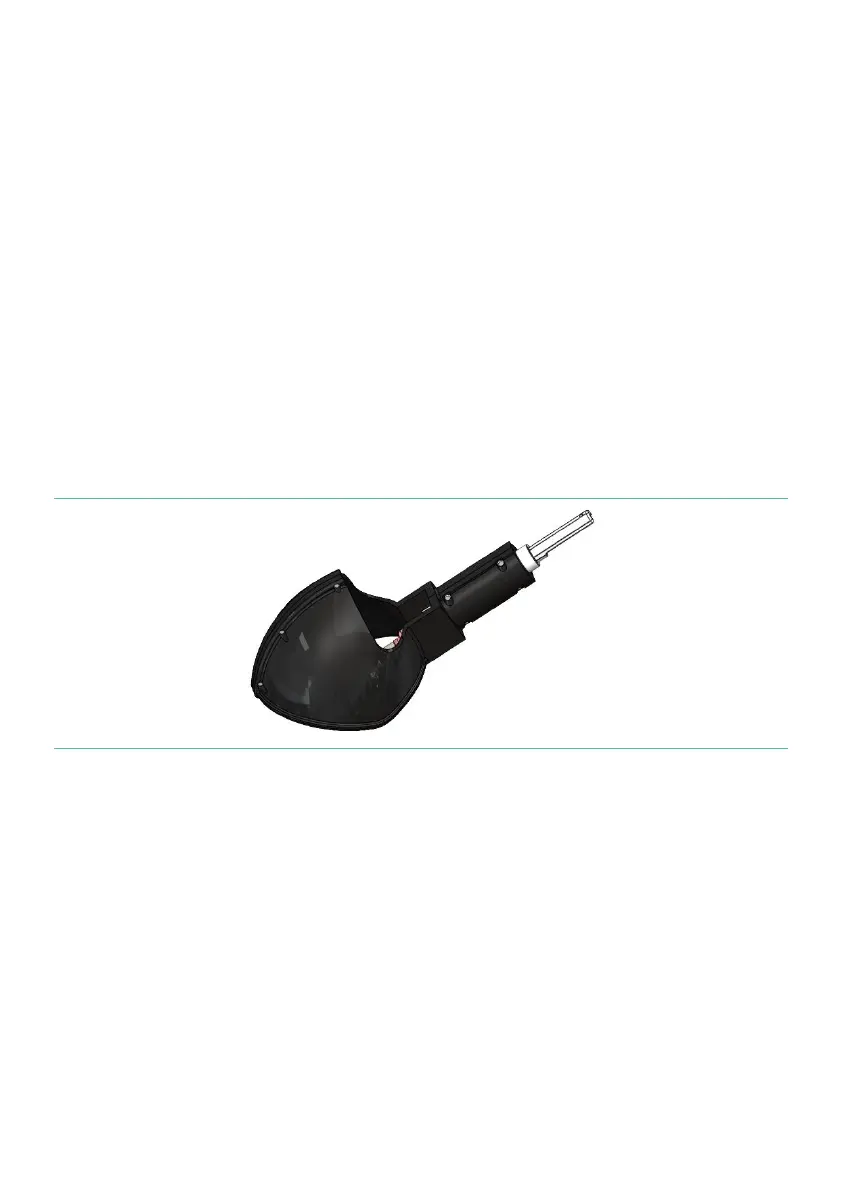

Figure 12 Shrouded Electrode Module
