RootWave Pro User Guide

Table 8 Treatment Return components

Treatment

Return Body

Houses the connectors and interfaces with

the Treatment Return Blade.

Treatment

Return Blade

Acts as the return electrode to complete the

circuit.

Extraction

Handle

Can be used to free the Treatment Return

Blade from the ground. Screw in fully in,

wiggle from side to side and pull.

Rubber

Mallet

Use to drive the Treatment Return Blade

into the ground until it is submerged and

the top is level with the soil surface.

Safety Earth GRW-002-3

The Safety Earth provides a protective conductor to earth to ensure

that you are protected from an electric shock should a fault occur.

Like the Treatment Return, the Safety Earth must be fully inserted

into the ground before treating weeds.

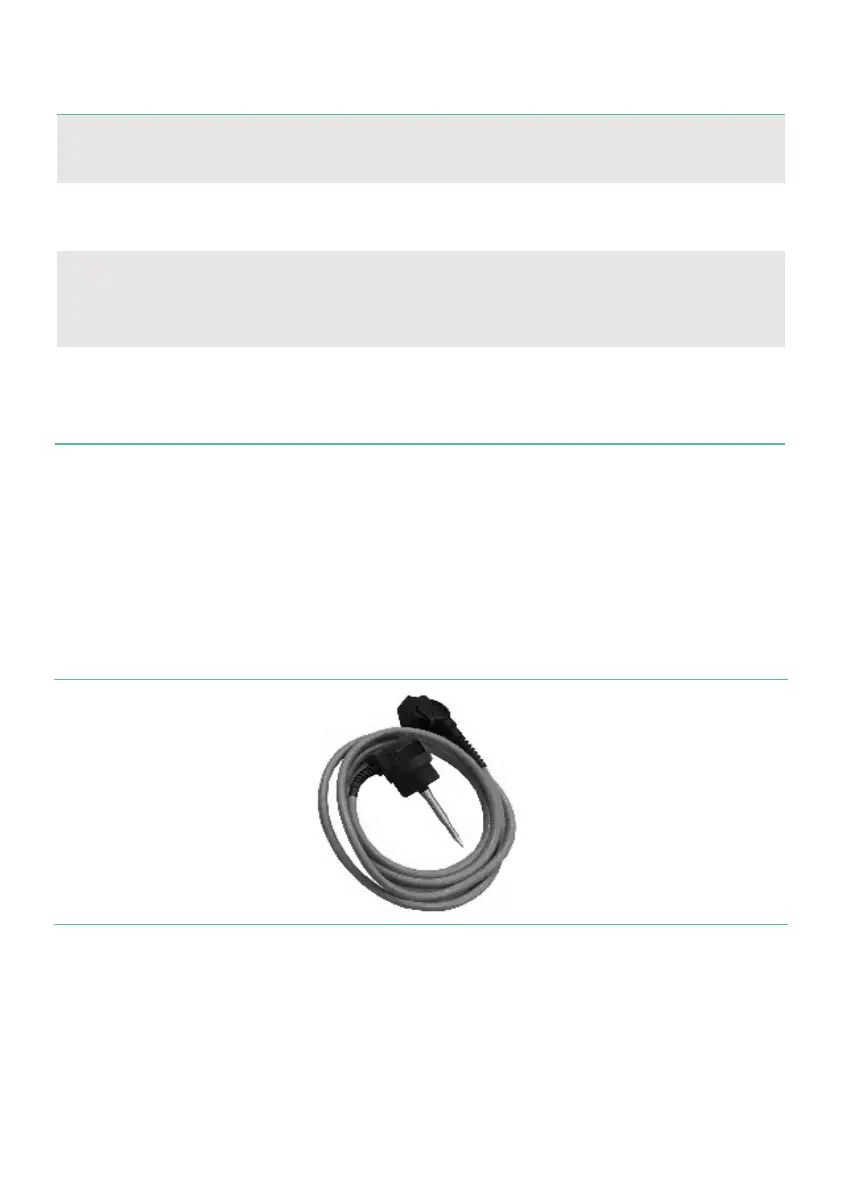

Figure 7 Safety Earth
