RootWave Pro User Guide

Safety features

RootWave Pro provides safety features to ensure safe operation.

Live electrode warning light

The Treatment Lance has an indicator light located on the shaft

which lights up in red when the Treatment Lance electrode is

activated. The electrode is at a hazardous voltage when this light is

on.

If this light does not turn on when the system is on, has been reset

and both triggers are pressed to the middle position, then do not

use and contact your RootWave Pro supplier.

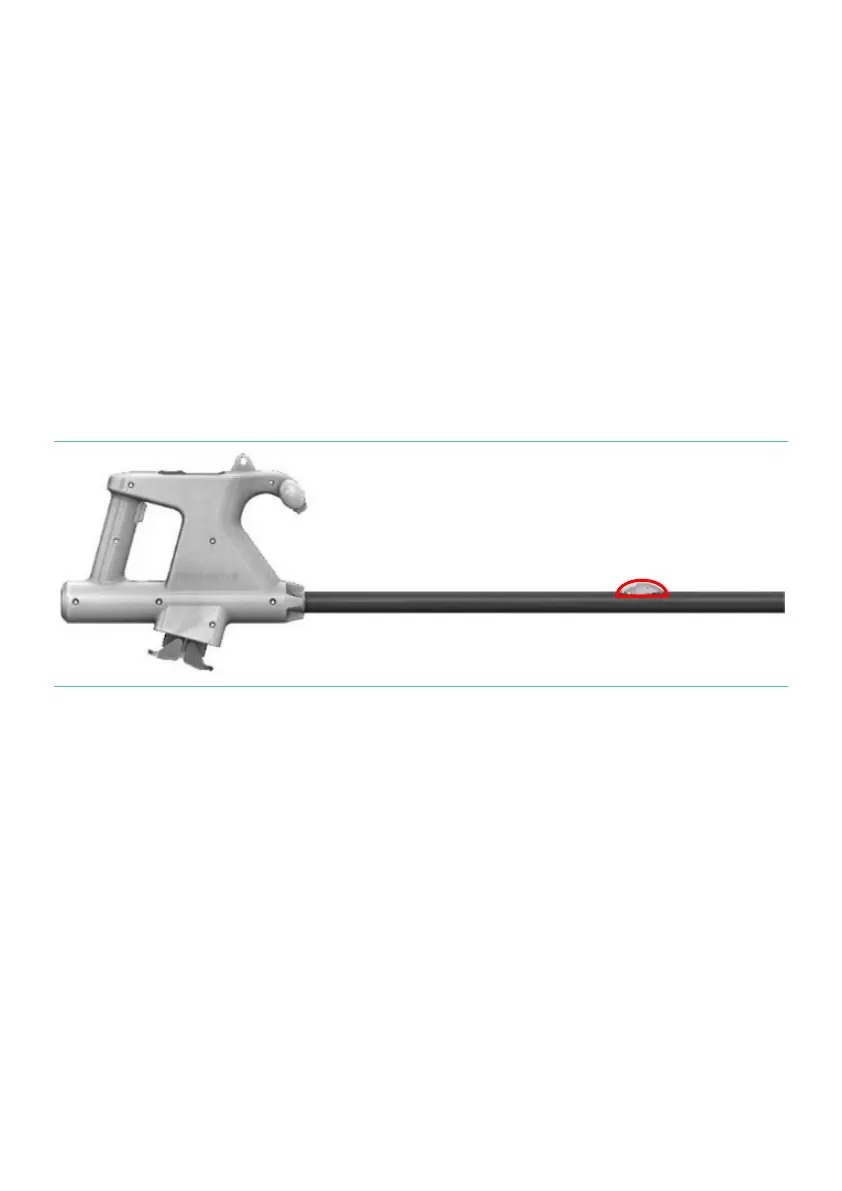

Figure 9 Live electrode warning light

Safe Stop on Treatment Lance

The Safe Stop feature on the Treatment Lance deactivates it and

prevents the accidental activation of the system when handling the

Treatment Lance.

To activate Safe Stop, fully press one or both triggers on the

Treatment Lance (position 2).
