RootWave Pro User Guide

5. Connect up

Ensure the generator and its output are

off.

Remove the dust caps on all connectors.

Connect the Safety Earth to the Power

Module.

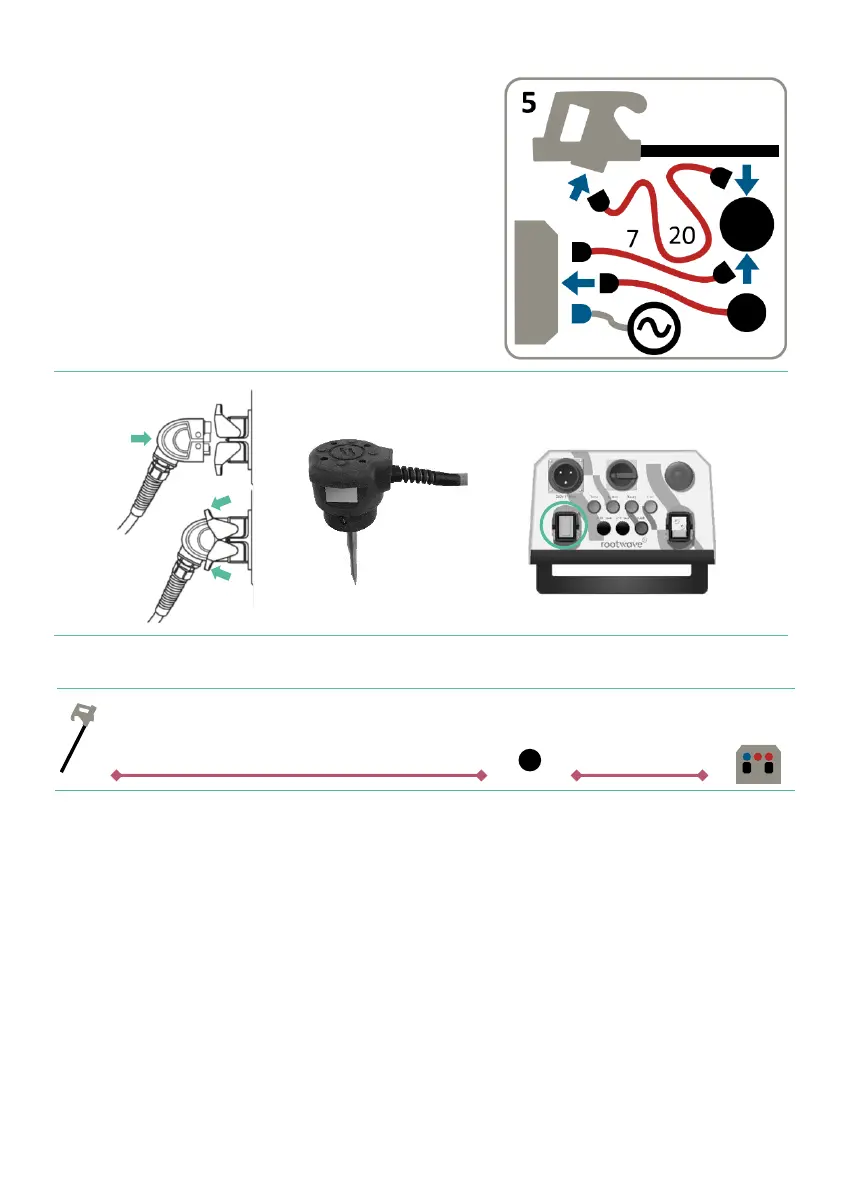

Figure 13 Connect the Safety Earth to the Power Module

Long 20 m

CAB-001-3

Short 7 m

CAB-002-3

Figure 14 Cable Configuration

Only connect the cables to the Treatment Return once it is installed

in the ground.

Connect the Treatment Return to the Power Module using the Short

Treatment Cable.
