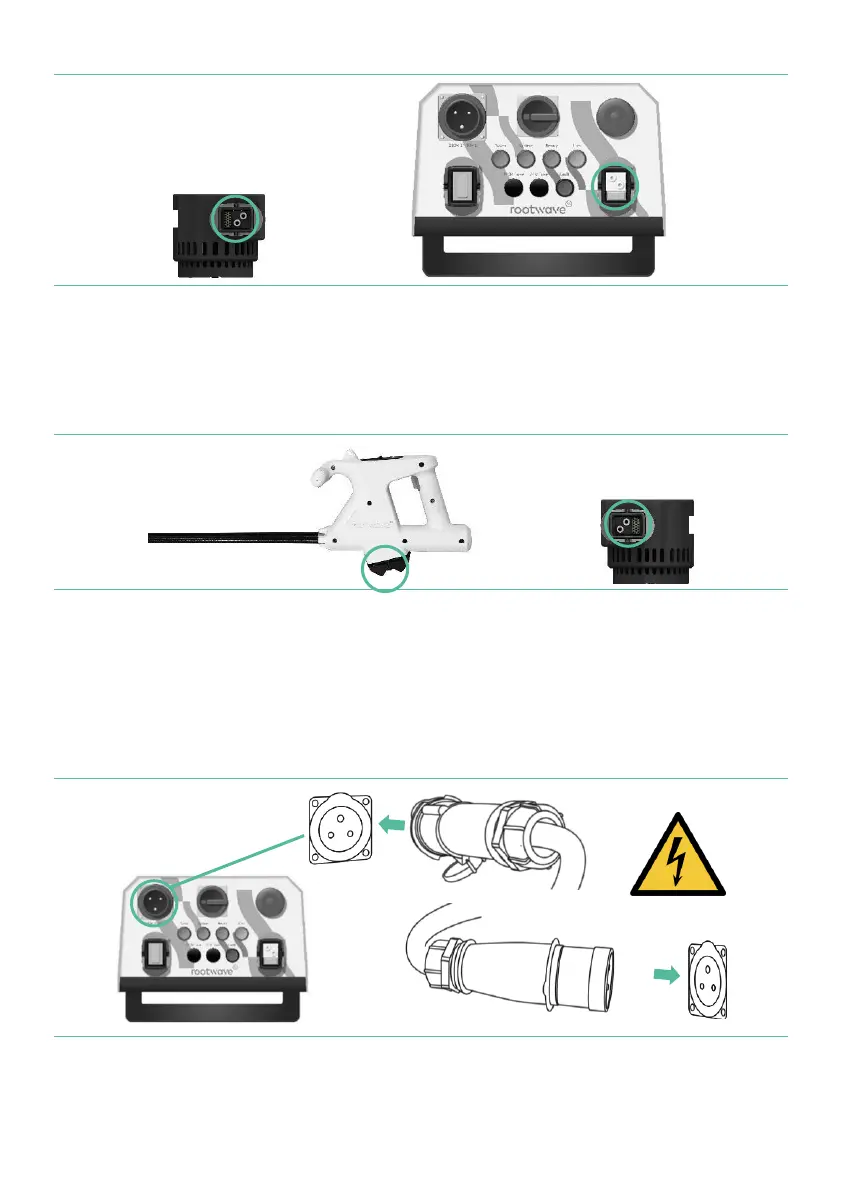

Figure 15 Connecting the short 7m Treatment Cable to the

Treatment Return and Power Module

Connect the Treatment Lance to the Treatment Return with the

Long Treatment Cable.

Figure 16 Connecting the long 20m Treatment Cable to the

Treatment Lance and Treatment Return

Place the Treatment Lance on a dry surface.

Using the generator cable, connect the Power Module to the

generator.

Figure 17 Connecting the generator cable to the Power Module and

generator
