• A higher voltage setting or longer duration may be

required for woodier stems or very dry ground.

• A number of treatments may be required for weeds

with extensive root systems.

• Excessive arcing may indicate that the voltage

setting is too high. If you see excessive arcing while

treating a weed, reduce the voltage setting.

Triggers

The Treatment Lance has two triggers. Use both triggers to activate

the Treatment Lance, and either or both triggers to activate Safe

Stop.

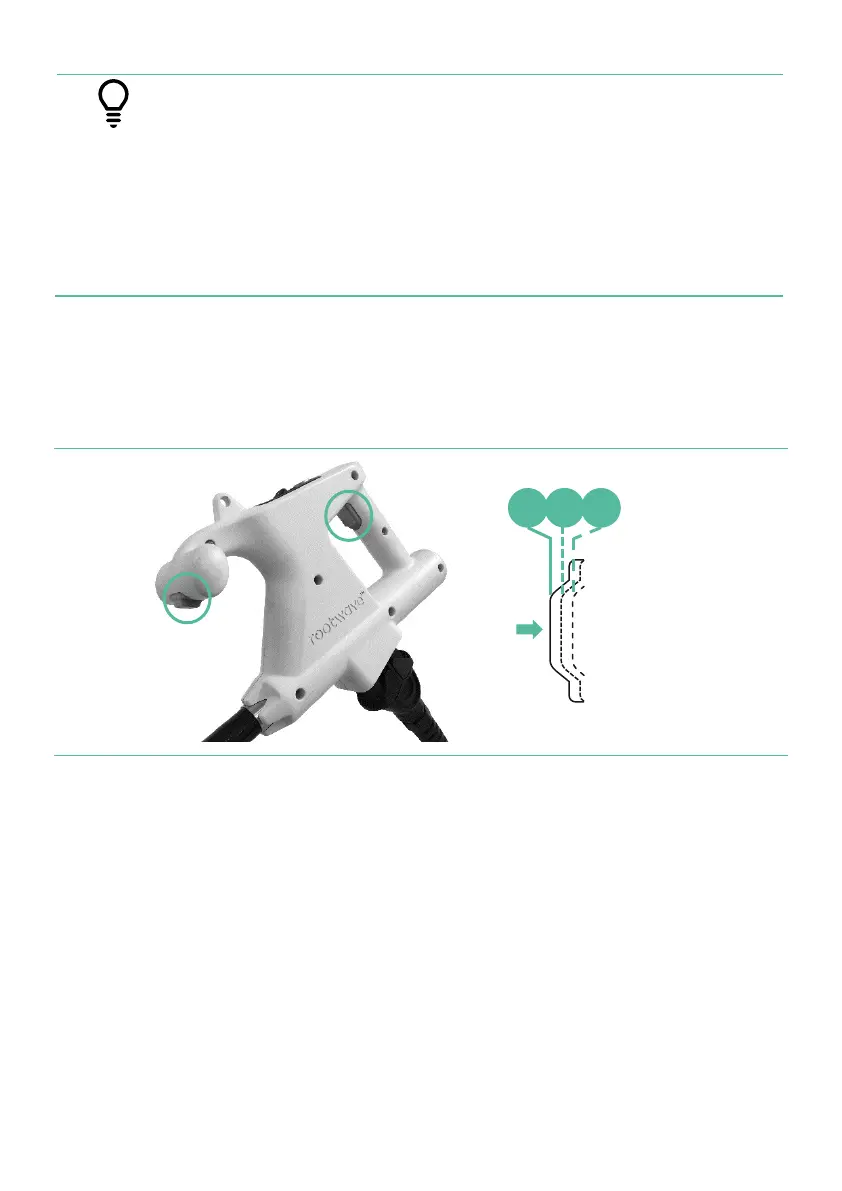

Figure 4 Treatment Lance trigger positions
