RootWave Pro User Guide

Dimensions and weight

Table 10 dimensions and weight

Model no

Width x depth x height (cm)

Weight

(kg)

TRA-001-3

40 x 73 x 36

105.0

APL-001-3 with

ETD-001-3 fitted

12 x 30 x 168 (other Electrode

Modules may result in different

lengths and widths)

2.5

GRW-001-3

22 x 17 x 19

2.5

GRW-002-3

12 x 12 x23 (plus 4m cable)

3.0

CAB-001-3

20m cable

7.6

CAB-002-3

7m cable

3.3

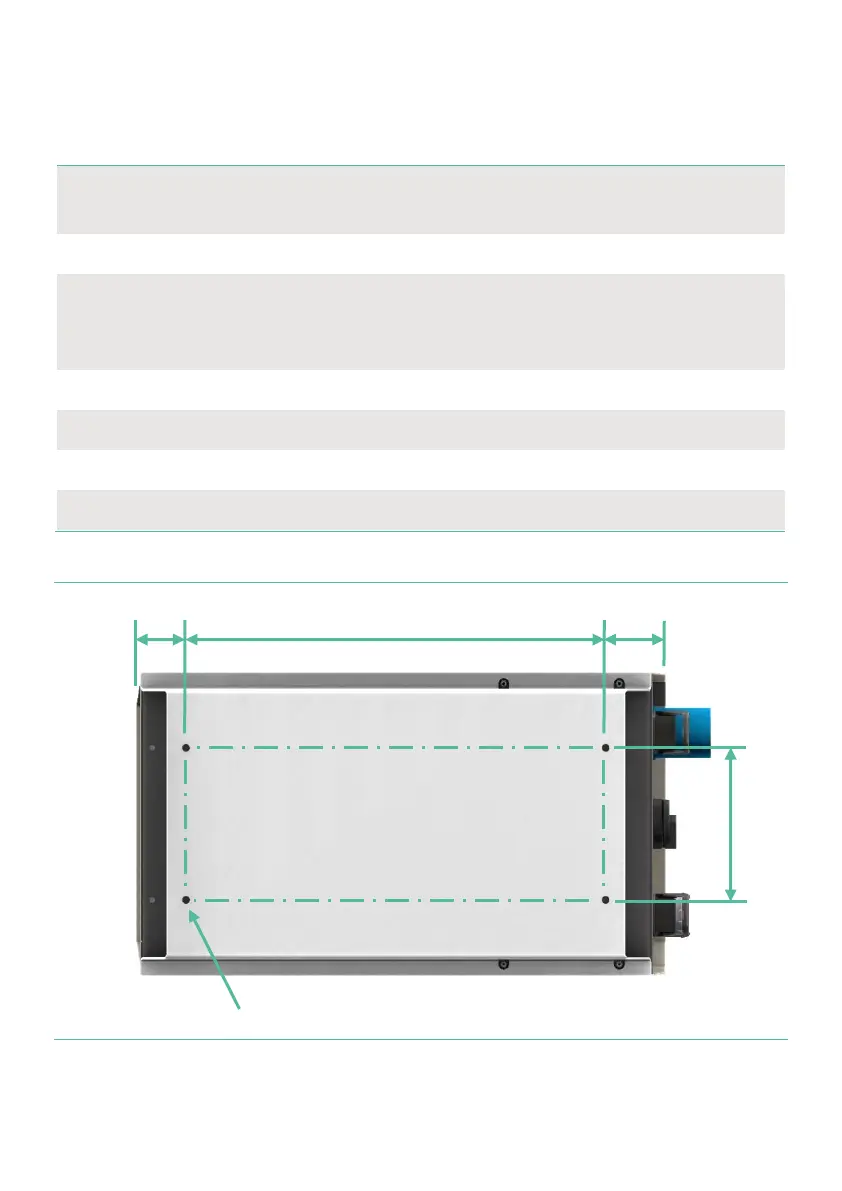

Figure 18 Power Module fixing holes (all dimensions in mm)

550

200

Diameter 10 for M8 bolt, 4 positions
