RootWave Pro User Guide

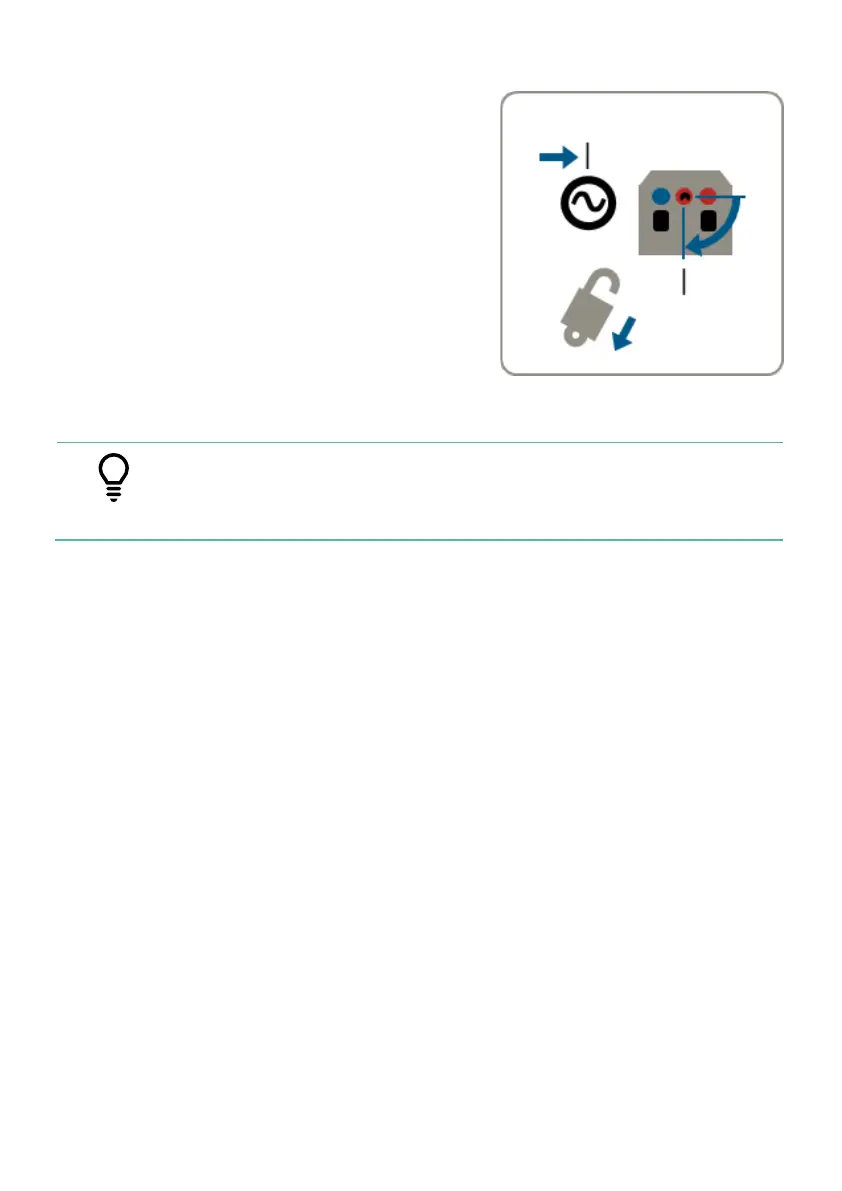

6. Turn on the system

Start the generator and turn on the

generator's output. Confirm the

‘Power’ light is now lit.

Remove the padlock from the power

isolator switch on the Power Module.

Turn the power isolator switch on the

Power Module to the 'ON' position.

Confirm that the ‘Power’, ‘System’ and

‘Ready’ lights are now lit. RootWave

Pro can now be used.

• If the ‘Ready’ light is not lit, check that the

Treatment Return and Safety Earth are fully inserted

in the ground.
