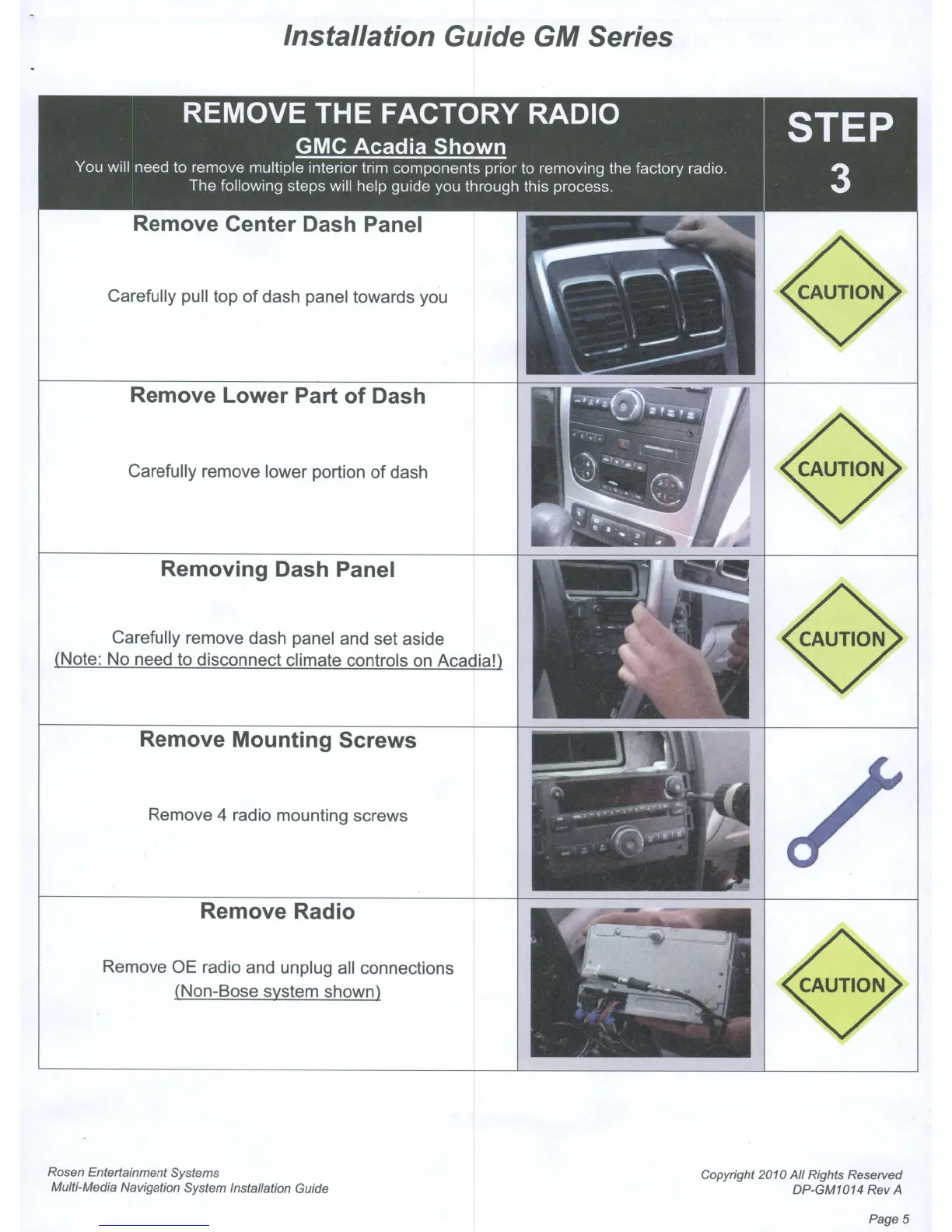

Installation Guide
GM
Series
Remove Center Dash Panel
Carefully pull top
of
dash panel towards you
Remove Lower Part of Dash
Carefully remove lower portion of dash
Removing Dash Panel
Carefully remove dash panel and set aside
(Note: No need to disconnect climate controls
on
Acadia!)
Remove Mounting Screws
Remove 4 radio mounting screws
Remove Radio
Remove DE radio and unplug all connections
(Non-Bose system shown)
Rosen Entertainment Systems
Multi-Media Navigation System Installation Guide
Copyright 2010
All
Rights Reserved
DP-GM1014 Rev A
Page 5
