BRP-Rotax
INSTALLATION MANUAL
DIRECT ATTACHMENT OF THE
ENGINE TO CHASSIS
If the frame of the chassis is specially prepared for in-
stallation of the ROTAX® 125 MAX DD2 evo, then 2
sheet metal brackets with holes are welded onto the
two frame tubes. The engine is clamped between the
two brackets with 4 bolts.
NOTE
The minimum screw in length of the screws fix-
ing the engine brackets onto the crankcase is
16 mm to 20 mm (0.6 - 0.95 in.).
NOTE
Secure bolts with bolt adhesive e.g. LOCTITE
243.
Step
Procedure
1 Mount engine directly on the brackets.
NOTE
Check for easy access to the pick-up sensor
(pos. 1). There are two options to install the
pick-up sensor. Choose the orientation which
gives you the best fit for your chassis
installation.
m WARNING
Non-compliance can result in serious injuries
or death!
For engine attachment to the chassis, please fol-
low the instruction of the chassis manufacturer.

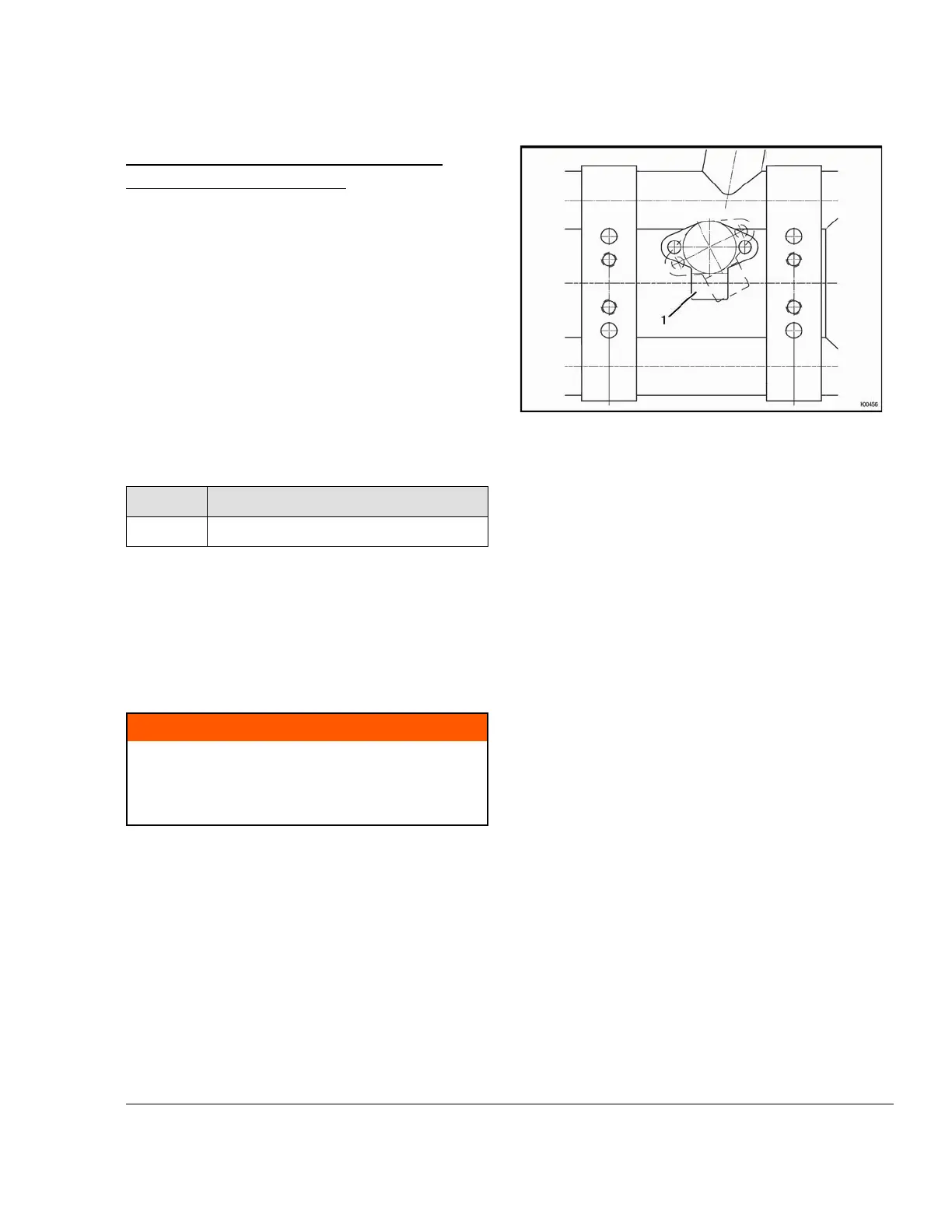

Figure 2.5
1
Pick-up sensor
Effectivity: 125 MAX DD2 evo
1
Page 5
Edition: September 01 2019
