BRP-Rotax
INSTALLATION MANUAL

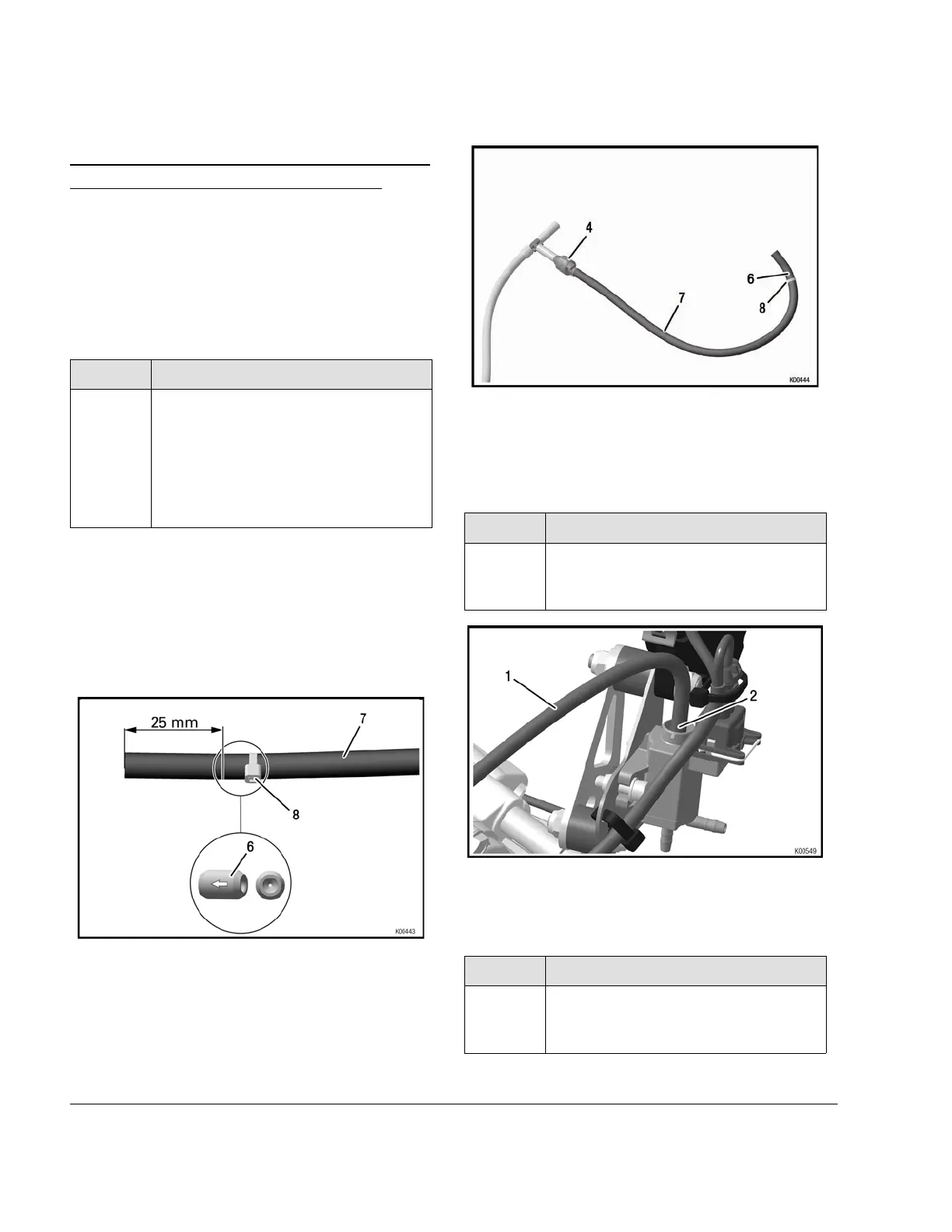

INSTALLATION AND CONNECTION
OF THE RAVE CONTROL UNIT
NOTE
The hose package of the RAVE control is al-
ready pre-assembled.
NOTE
The impulse restrictor is offered optionally.
Step
Procedure
1
Insert impulse nozzle (pos. 6) about 25
mm into the 420 mm pressure line
(pos. 7) using an Allen key SW4. Pay
attention to the mounting direction! It
also works without an impulse nozzle,
this only serves to choke the opening
of the exhaust valve.
NOTE
In order to prevent the displacement of the im-
pulse nozzle (pos. 6), a small cable tie (pos. 8)
should be attached directly afterwards to the
pressure line. Do not tie up the pressure line
completely!
Figure 7.3
4 Check valve
6
Impulse nozzle
7 Pressure line
8
Tie wrap small
Step
Procedure
2
Attach the black hose of the hose
package (pos. 1) to the metal connec-
tor (pos. 2) of the magnetic valve
Figure 7.4
1
Hose package
2
Metal connector
Step
Procedure
3
Attach the other end of the hose pack-
age (pos. 1) (short end with T-piece) to
the fuel pump.
6
Page 4
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
