Rotax 125 MAX DD2 evo User Manual

BRP-Rotax
INSTALLATION MANUAL
INSTALLATION OF MOUNTING
PLATE
Tools required:
• Allen key 6 mm
Step
Procedure
1 The holding bracket, the mounting
plate, the solenoid valve and the igni-
tion coil are already pre-assembled.
2 Install whole bracket kit with Allen
screw M8x50 (pos. 2) and distance
sleeve 8.2/12/25.5 (pos. 3) onto the
engine.
ATTENTION
Slot of mounting plate has to be installed in
the correct position.

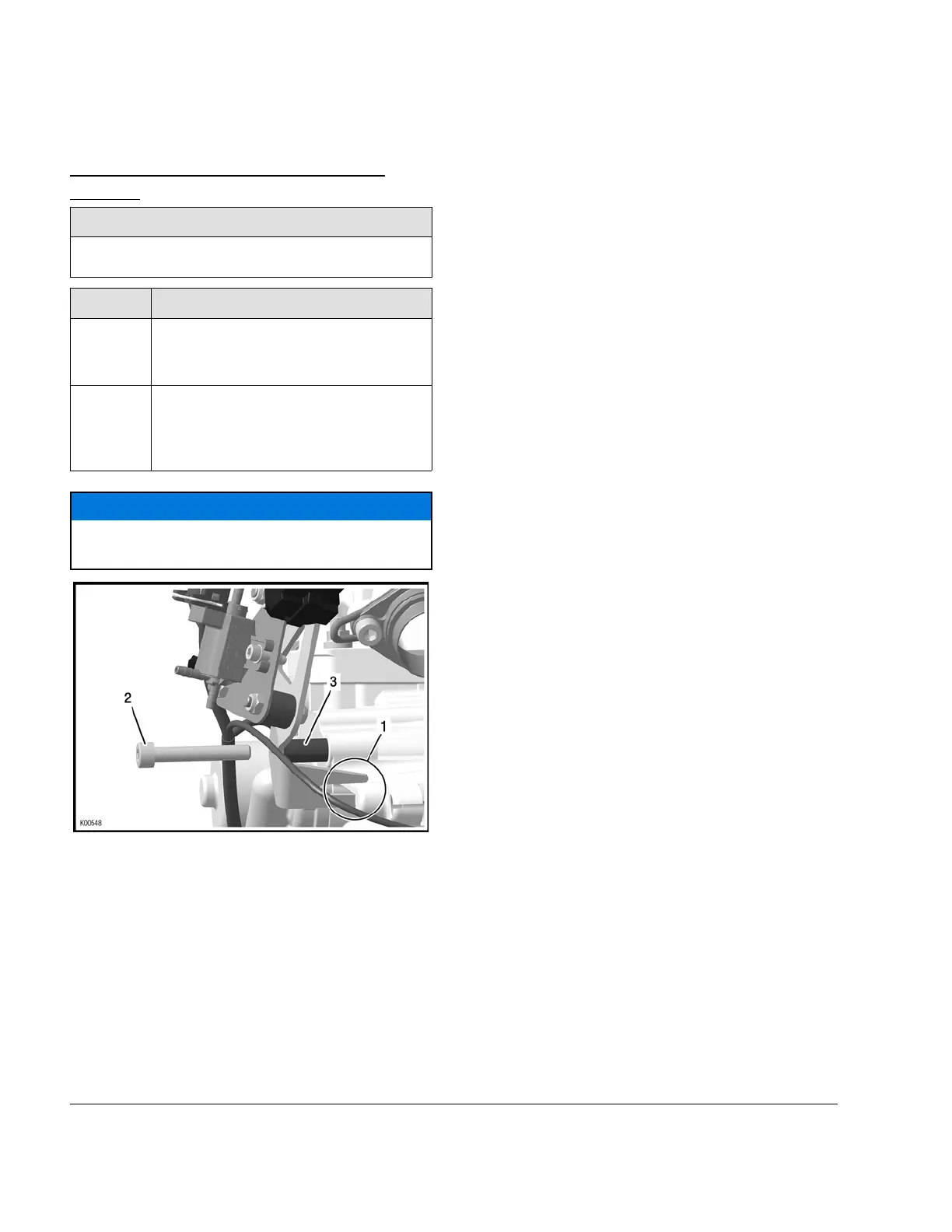

Figure 7.1
1 Slot
2
Allen screw M8x50
3
Distance sleeve 8.2/
12/25.5
NOTE
Distance sleeve (pos. 3) has to be install be-
tween engine housing and retaining plate. Dis-
tance sleeve can be replaced by fitting of an
additional seat stay.
6
Page 2
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
