INSTALLATION MANUAL
ASSEMBLY OF PADDLE SHIFT
SYSTEM
Tools required:
• Allen key 6 mm
• Allen key 5 mm
Step
Procedure
1 Install spacer (pos. 1) into the appro-
priate bore (pos. 2) of the engine
housing.

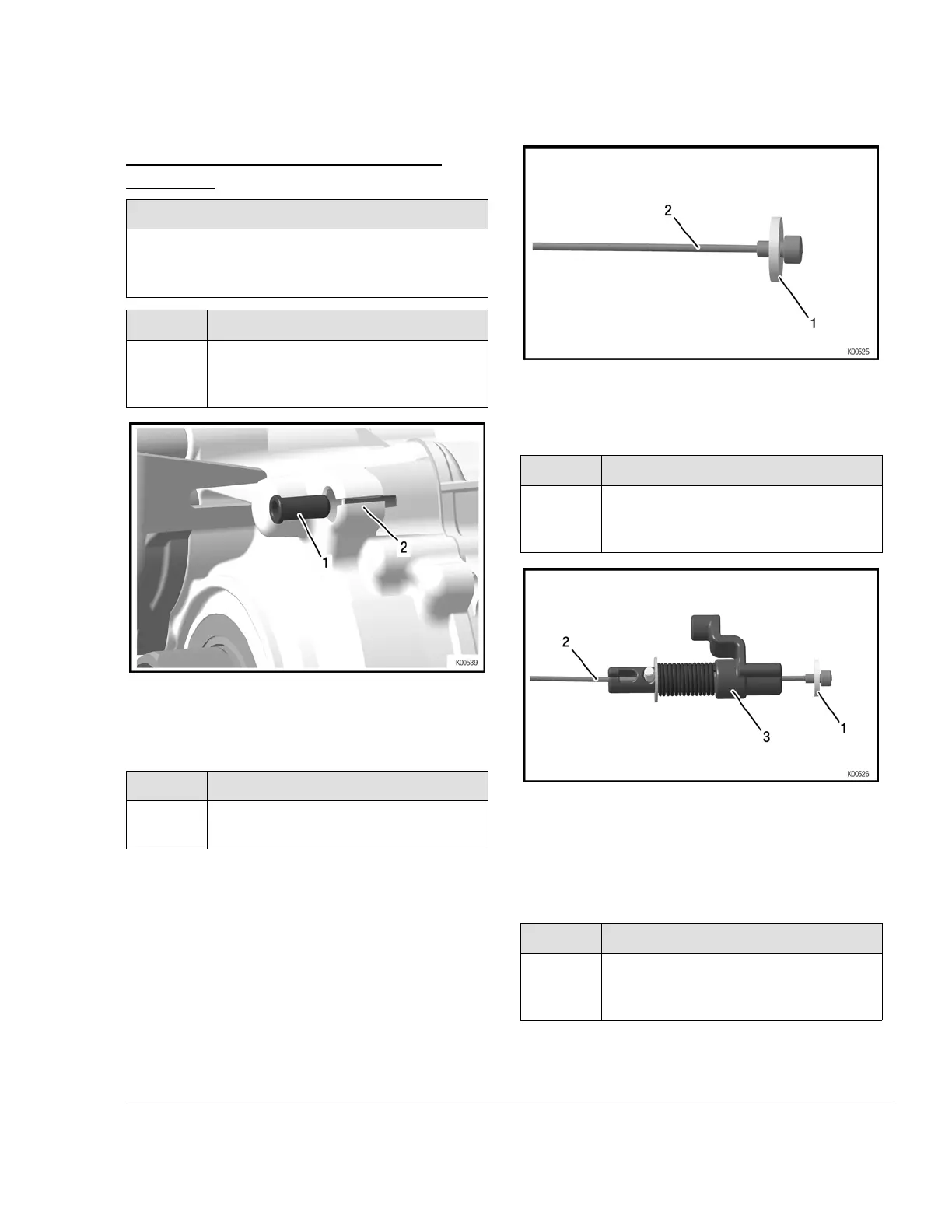

Figure 7.10
1
Spacer
2
Appropriate bore
Step
Procedure
2
Install washer (pos. 1) on one of the
two Bowden cables (pos. 2).
Figure 7.11
1 Washer
2
Bowden cable
Step
Procedure
3 Mount Bowden cable (pos. 2) with
washer (pos. 1) onto the shift contact
guidance (pos. 3).
Figure 7.12
1 Washer
2
Bowden cable
3
Shift contact
guidance
Step
Procedure
4
Mount Bowden cable with shift contact
guidance (pos. 1) to the retaining plate
(pos. 2).
Effectivity: 125 MAX DD2 evo
6
Page 7
Edition: September 01 2019
