BRP-Rotax
INSTALLATION MANUAL

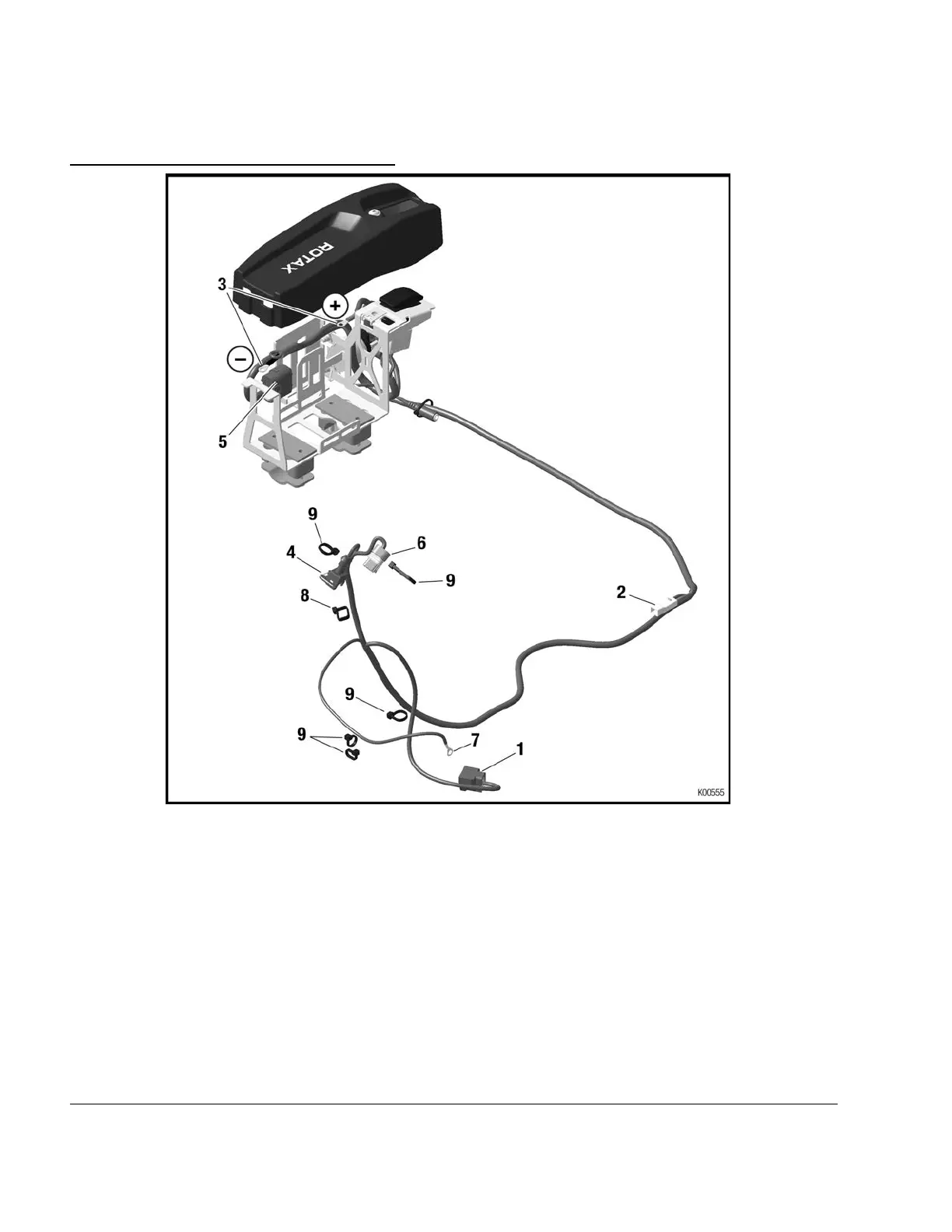

ELECTRIC SYSTEM OVERVIEW
Figure 4.1
1
Connector pickup sensor
2 Connector starter
3
Connector battery
4
Connector RAVE (only applicable 125 MAX evo)
5 Connector ECU 6
Connector ignition coil
7 Connector shift contact 8
Tie wrap 250x4.8
9
Tie wrap 142x3.2
3
Page 2
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
