Rotax 125 MAX DD2 evo User Manual

BRP-Rotax
INSTALLATION MANUAL
INSTALLATION AND CONNECTION
OF THE CARBURETOR
Tools required:
• Ratchet wrench with socket 7 mm
• Phillips screwdriver
Step
Procedure
1
Fit carburetor (pos. 1) into carburetor
socket and secure with hose clamp
(pos. 2) in vertical position.
2 Connect the outlet hose of the fuel
pump with fuel inlet (pos. 3) on the
carburetor.

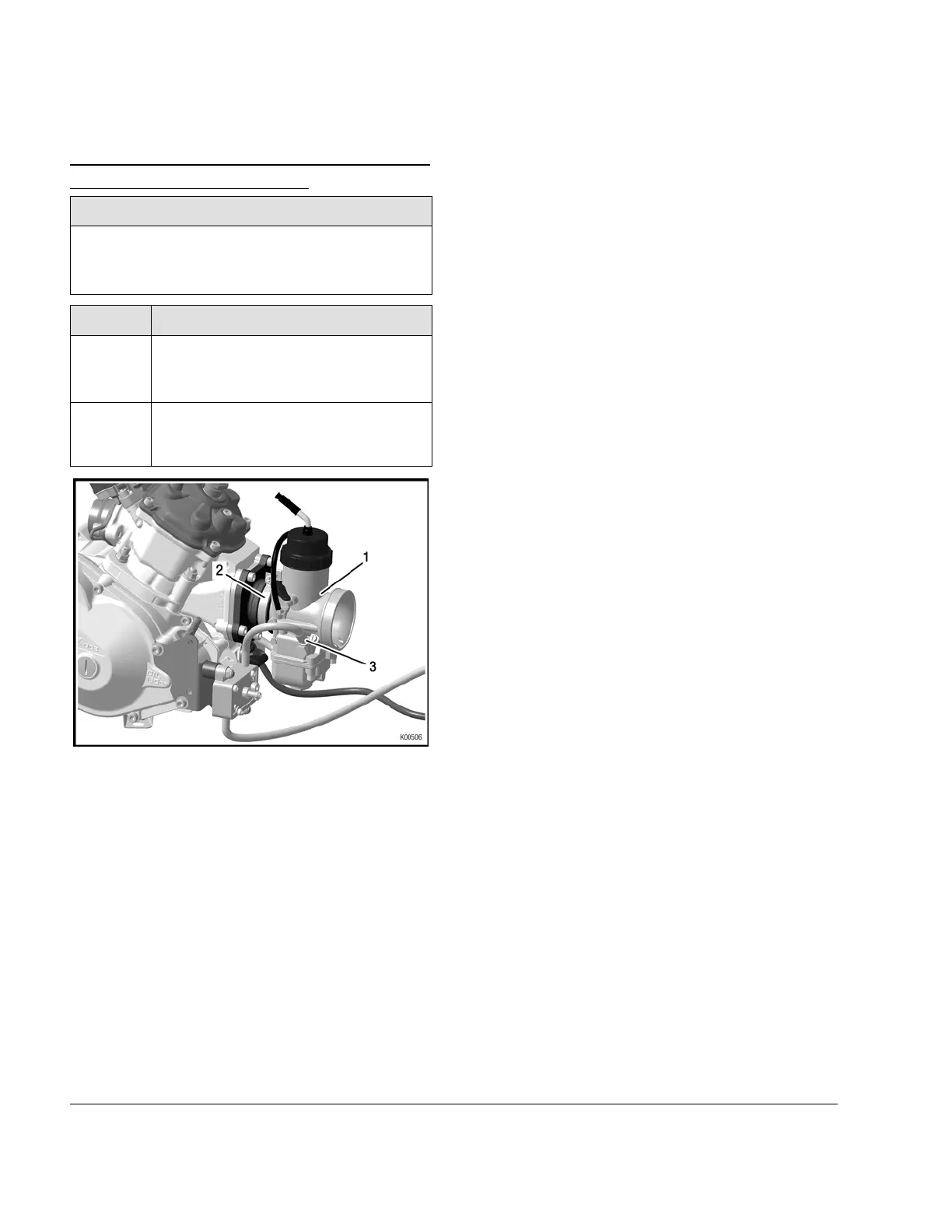

Figure 3.6
1 Carburetor
2
Hose clamp
3 Fuel inlet
2
Page 6
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
