BRP-Rotax
Operators Manual
DESIGN OF THE ROTAX ENGINE 125 MAX DD2 EVO

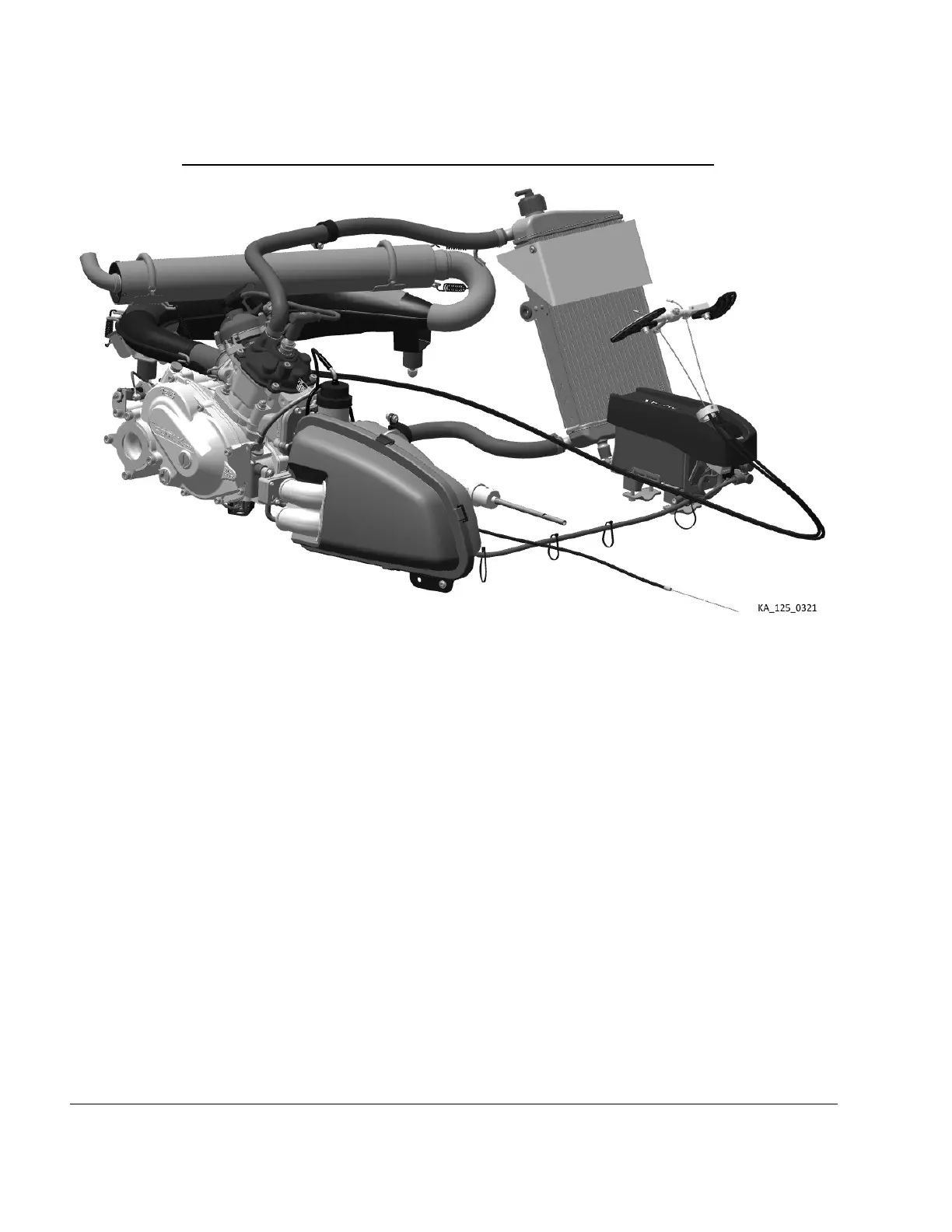

Figure 1.1
GENERAL
The Rotax 125 MAX DD2 evo engine is a single cylinder two stroke engine with reed valve
controlled inlet and 125 cm
3
displacement. Mixture lubrication is achieved by adding oil to
the gasoline in a specified mixing ratio.
The power transmission to the rear axle takes place via a manually shift able integrated 2-
speed gearbox.
________________________________________________________________
COOLING CIRCUIT
The coolant is pumped from the radiator to the water pump which is driven by the clutch
shaft. The water pump conveys the coolant through cylinder and the cylinder head back to
the radiator.
The cooling circuit is equipped with a thermostat (opening point 45 °C / 113 °F). It assures
that the engine reaches its operating temperature quickly and keeps it at a relatively con-
stant level.
The thermostat is integrated in the cylinder head cover.
