Rotax 125 MAX DD2 evo User Manual

BRP-Rotax
INSTALLATION MANUAL

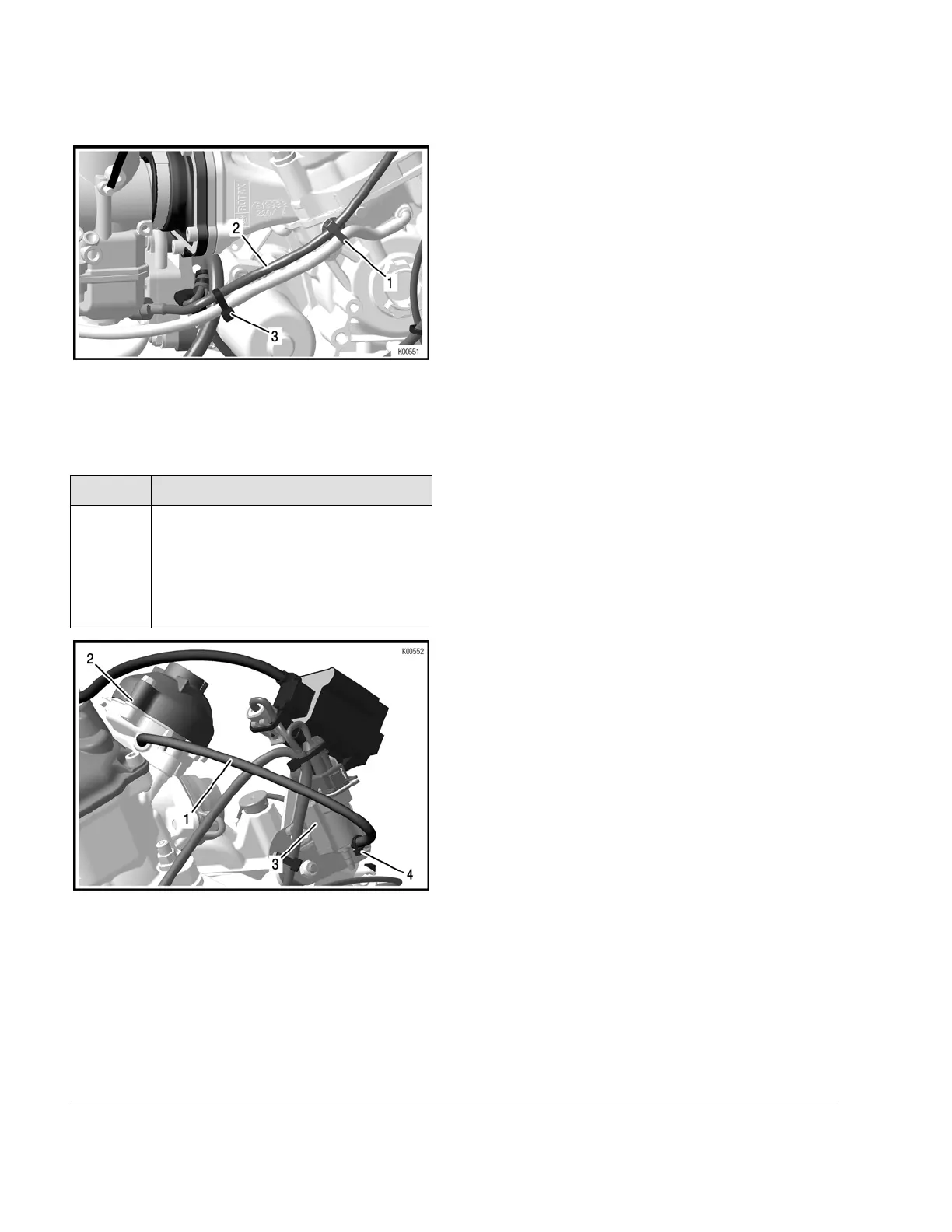

Figure 7.8: Cable tie
1 Cable tie
2
Black hose
3 Cable tie
Step
Procedure
8
Attach the 220 mm pressure line (pos.
1) to the magnetic valve (pos. 3). Se-
cure the pressure line on the magnetic
valve with a tie wrap (pos. 4). Attach
the other end of the pressure line to
the exhaust valve (pos. 2).
Figure 7.9
1 Pressure line
2
Exhaust valve
3
Magnetic valve
4
Cable tie
6
Page 6
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
