Rotax 125 MAX DD2 evo User Manual

BRP-Rotax
INSTALLATION MANUAL

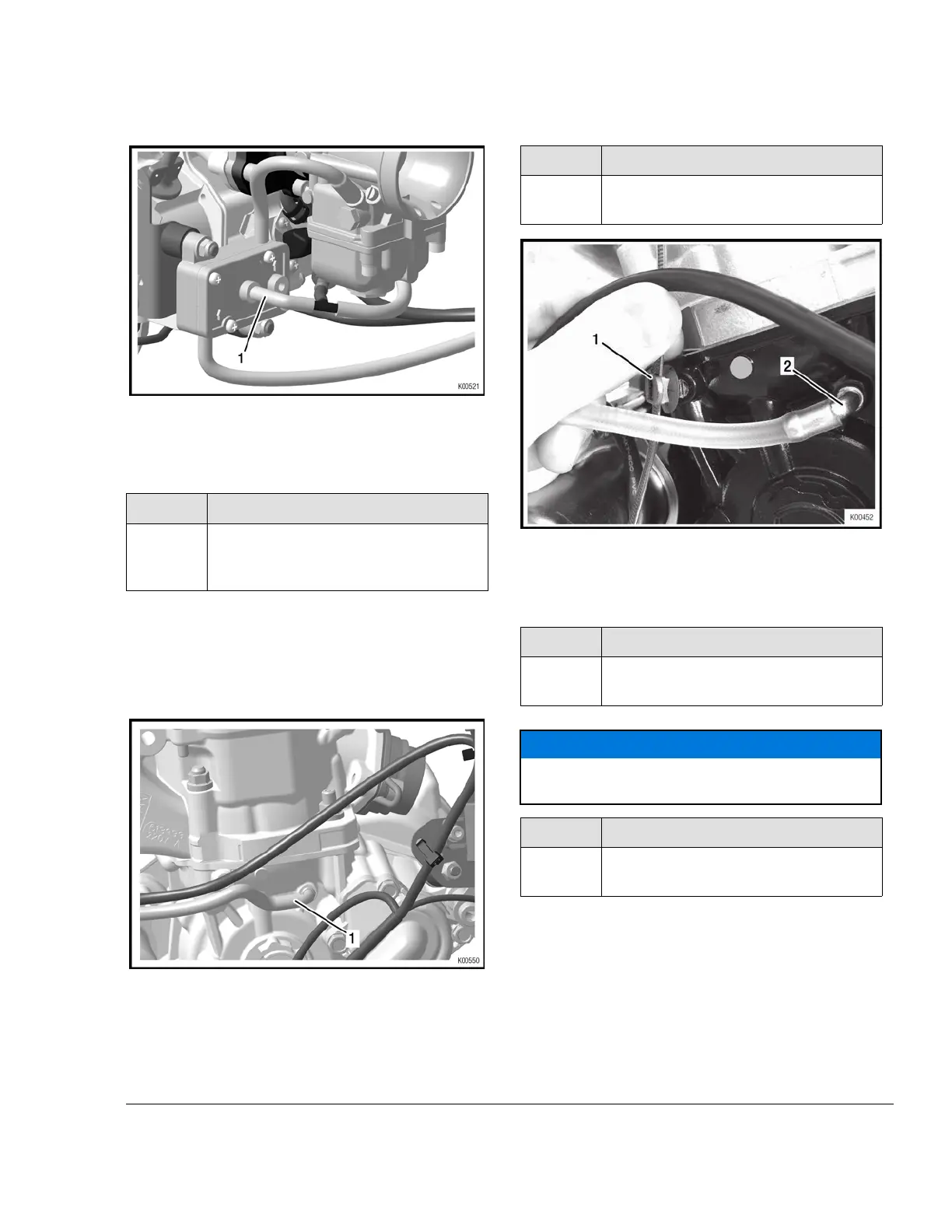

Figure 7.5
1
Hose package
Step
Procedure
4
Attach the fuel line of the hose pack-
age (pos. 1) to the impulse nipple on
the engine housing..
NOTE
Check that valve is not the lowest point of the
impulse circuit to prevent that condensation af-
fects a proper operation.
Figure 7.6
1
Hose package
Step
Procedure
5
Attach cable tie with mount (pos. 1) to
the housing.
Figure 7.7
1 Cable tie
2
Impulse nipple
Step
Procedure
6
Secure both lines with cable tie, ensur-
ing that the black hose is on top.
ATTENTION
Do not tighten cable ties too tight, because
constricted lines can lead to loss of function.
Step
Procedure
7
Attach an additional cable tie (pos. 3)
as shown in figure.
Effectivity: 125 MAX DD2 evo
6
Page 5
Edition: September 01 2019
