INSTALLATION MANUAL

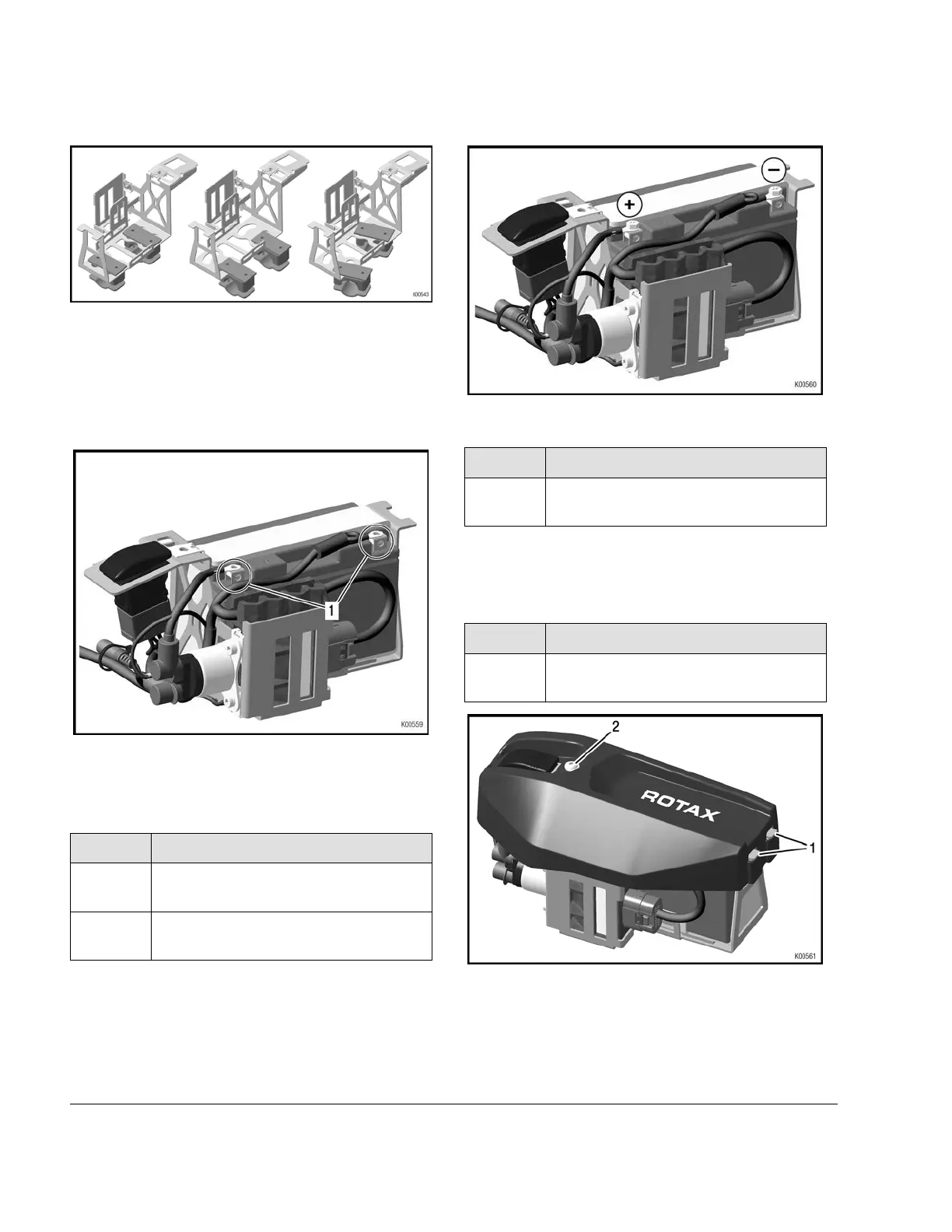

Figure 4.6
NOTE
The battery terminals must point in the direction
of the control unit.
Figure 4.7
1
Battery terminals
Step
Procedure
3
Connect the positive terminal (red) of
the battery.
4
Connect the negative terminal (black)
of the battery.
Figure 4.8
Step
Procedure
5
Install the battery cover onto the bat-
tery holder.
NOTE
Make sure that the two retaining lugs (pos. 1)
are in the notches of the battery cover!
Step
Procedure
6
Tighten flange head screw (pos. 2) of
the battery cover.
Figure 4.9
1
Retaining lugs
2
Flange head screw
3
Page 6
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
