BRP-Rotax
INSTALLATION MANUAL

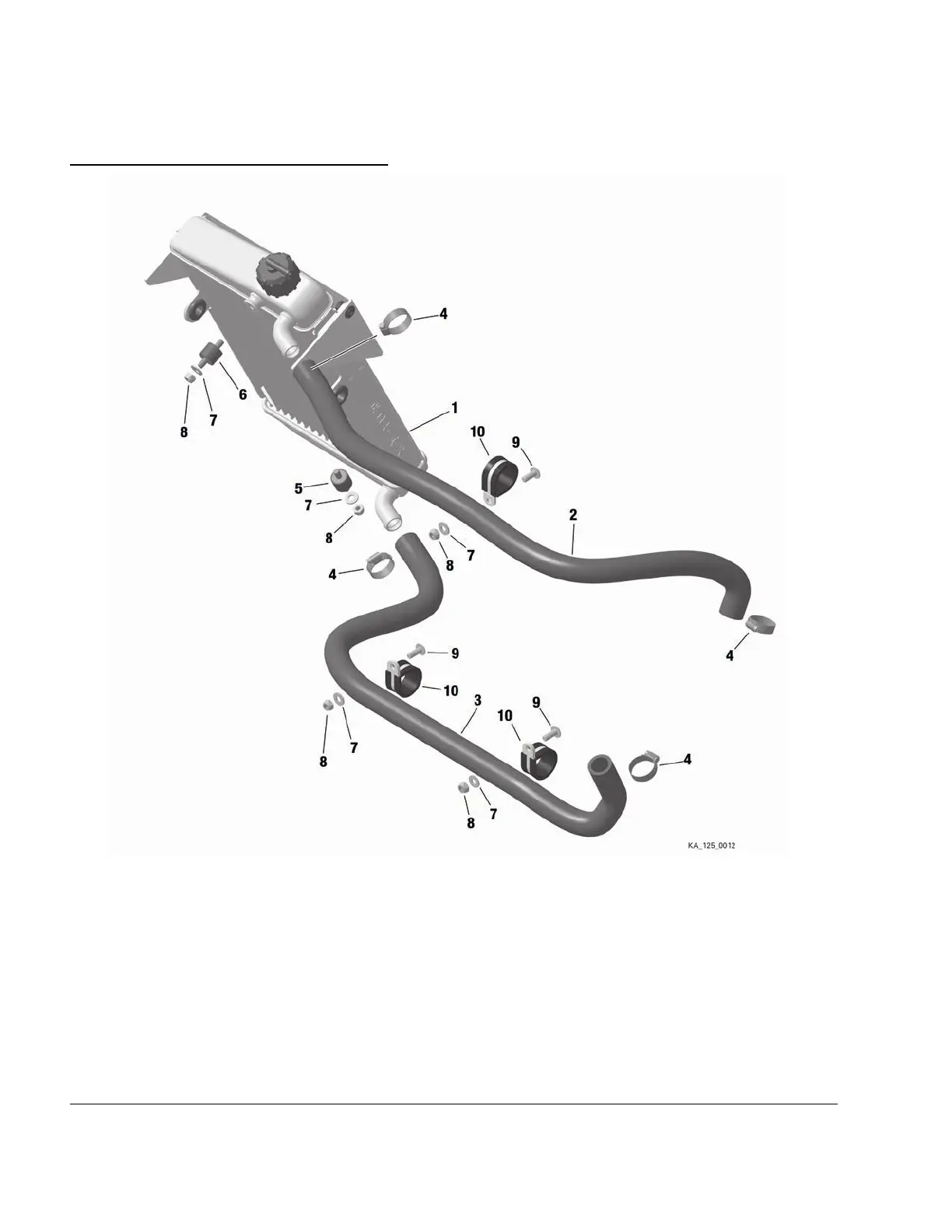

COOLING SYSTEM OVERVIEW
Figure 5.1
1 Radiator 2
Upper coolant water hose
3 Lower coolant water hose 4
Clamp 16ā€“25
5
Rubber puffer
6
Rubber puffer
7 Washer 8 Lock nut
9
Allen screw ā€” rounded flange head
10
Hose clamps
4
Page 2
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
