BRP-Rotax
INSTALLATION MANUAL

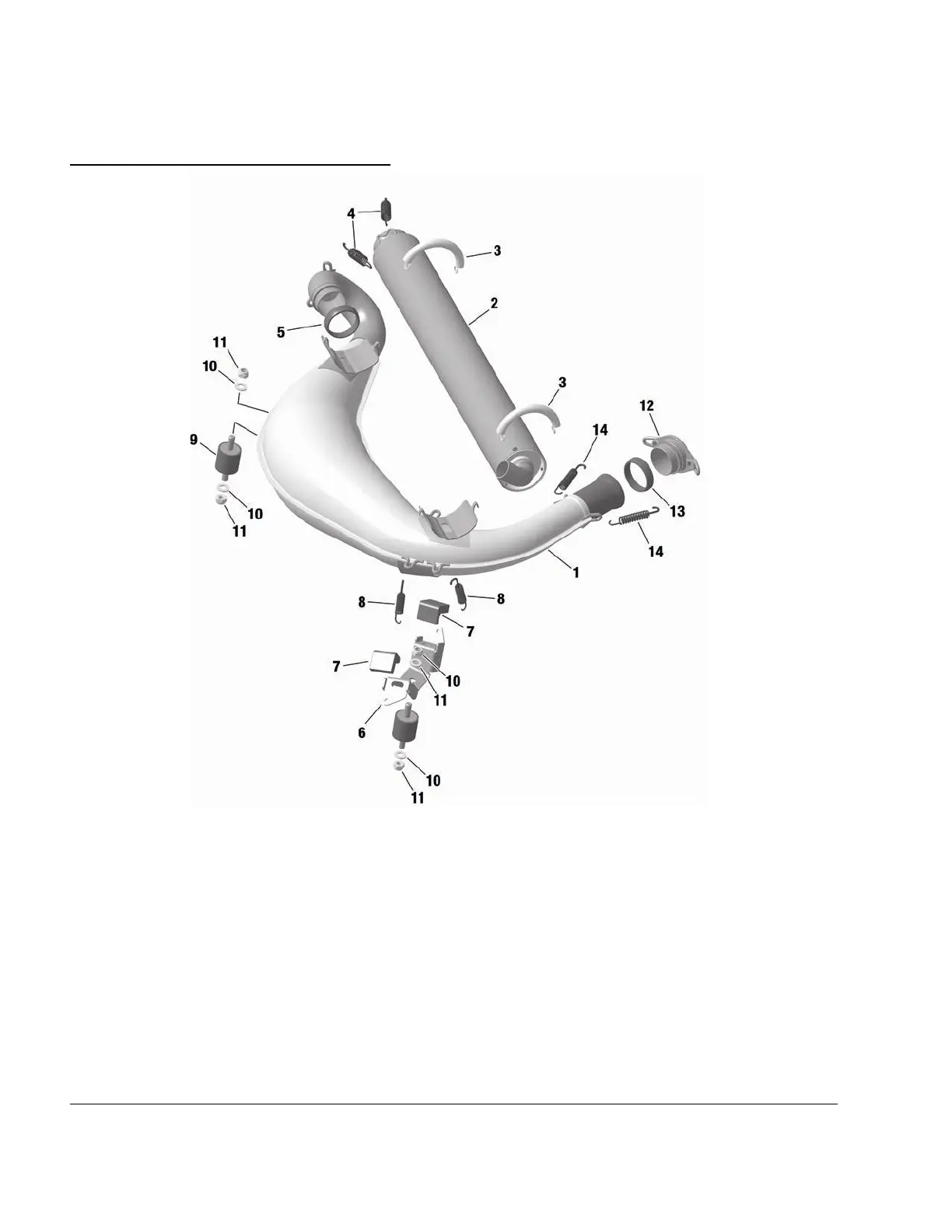

EXHAUST SYSTEM OVERVIEW
Figure 6.1
1
Exhaust system
2
Silencer assy.
3
Tension spring
4
Spring stainless
5
Exhaust gasket
6
Retaining plate
7 Rubber buffer 8
Spring stainless
9 Rubber buffer 10 Washer 8.4
11 Lock nut M8 12
Exhaust socket assy.
13
Exhaust gasket
14
Spring stainless
5
Page 2
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
