Rotax 125 MAX DD2 evo User Manual

BRP-Rotax
Operators Manual
Step
Procedure
3
Select the appropriate size of main jet, refer to ROTAX® Max Jetting Guide.
4
Install the main jet cup (pos. 14) in position and fit the corresponding main
jet (see ROTAX® Max Jetting Guide).
5
Fit and hand-tighten the plug screw (pos. 27) and gasket ring (pos. 26).
Needle position
1
2
3
4
5
K00403
9
8
10
11
7
5
4
3
6
2
1
12
13
14
15
16
17
19
18
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

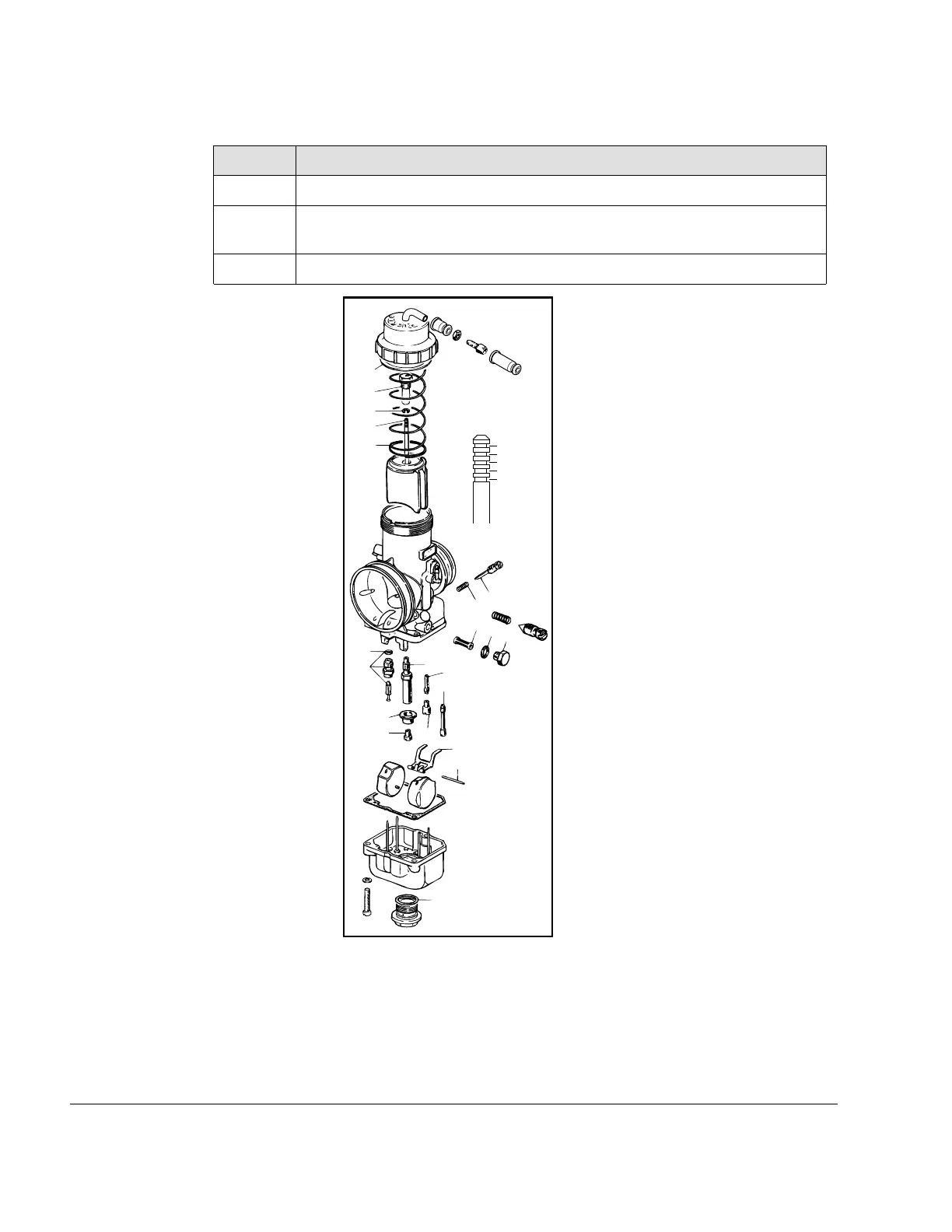

Figure 3.12: Components of carburetor
3
Page 12
Edition: September 01 2019
Effectivity: 125 MAX DD2 evo
