24 IQ3 manual – Section: Commissioning - Basic Settings

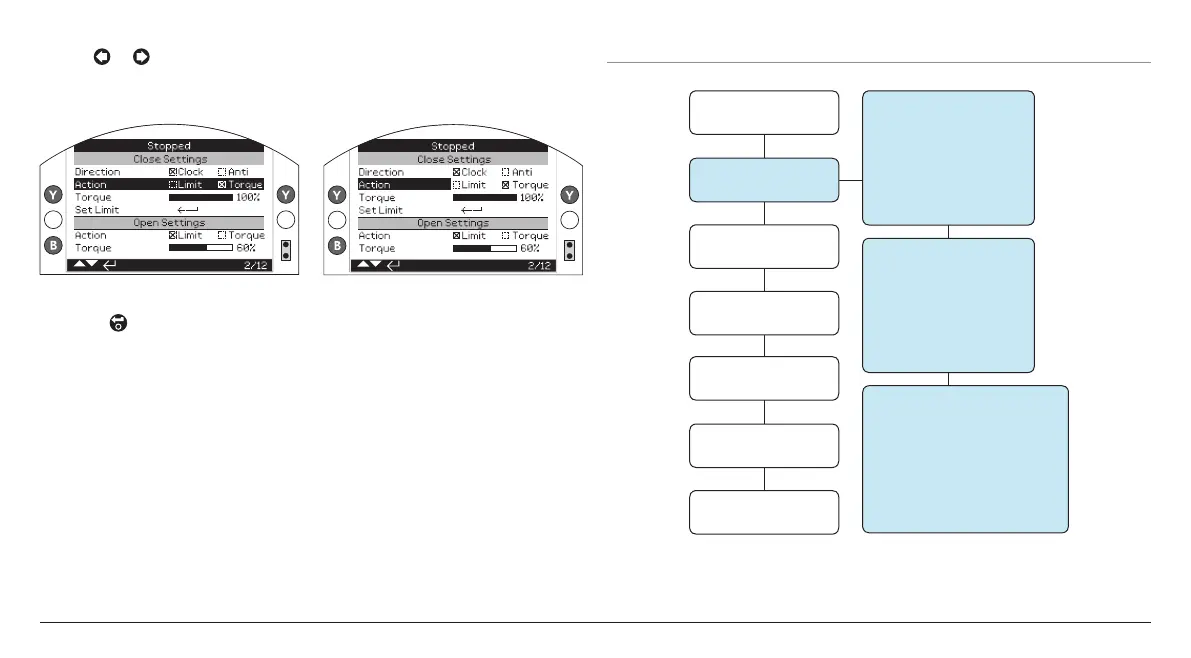

Use the
or
arrow keys to change
the setting to the required value, the
example below show a close action of
Torque having been selected.
Fig. 8.2.5
Press the key to select.
The highlight will return to the function
name only and its stored setting will be
displayed:
Fig. 8.2.6
The password will be requested
the first time a function is selected.
Once correctly entered, the
password will not be required to
be entered again for the duration
of setting tool communication with
the actuator. Other functions can
be set as required.
8.3 Basic Settings Menu
Settings Menu
Limits
Indication
Control
ESD
Security
Defaults
CLOSE SETTINGS
Direction (CW/ACW)
Action (Torque/Limit)
Torque (40 - 100%)
Set Limit
OPEN SETTINGS
Action (Torque/Limit)
Torque (40 - 100%)
Set Limit
TORQUE SWITCH
BYPASS
Close
Closing Position (100 - 5%)
Open
Open Position (0 - 95%)
