rotork IQ Series Instructions For Safe Use, Installation, Basic Setup And Maintenance

IQ3 manual – Section: Introduction 3
Battery sealing plug
Metal (8 mm Allen key required)
Plastic (10 mm Allen key required)
as appropriate.
1. Introduction

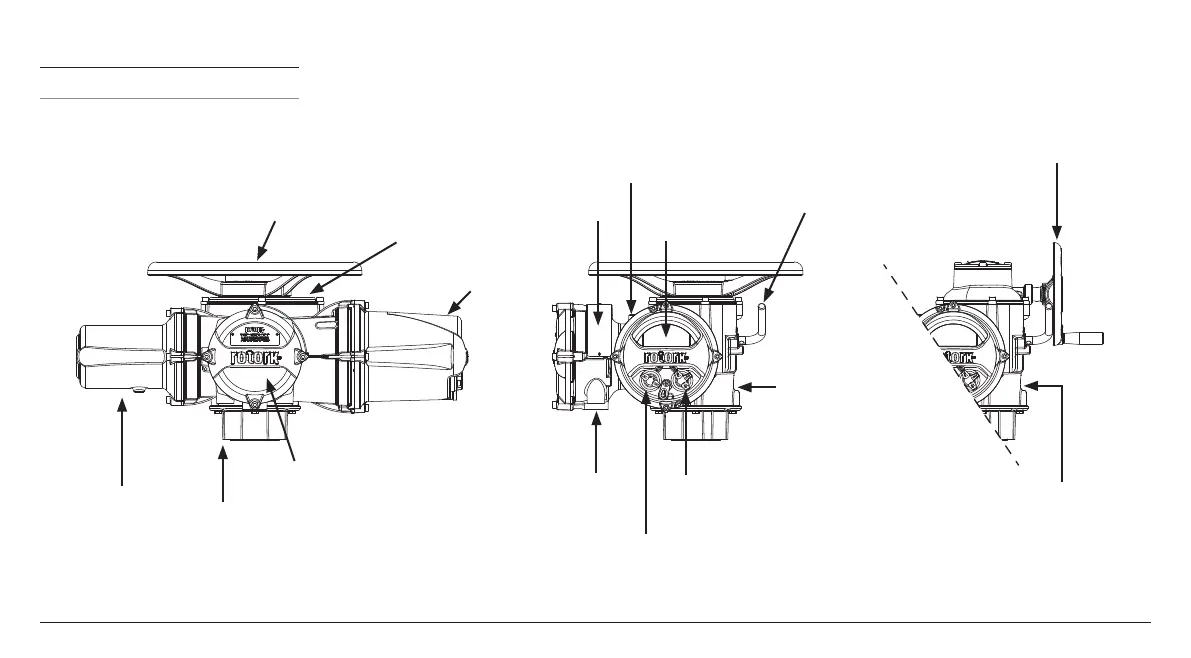

1.1 Identifying Actuator Parts
Motor
Base
Terminal Cover
Hand wheel
Oil plug
Control Cover
Conduit entries
Local / Remote / Stop
selector
Open / Close selector
Oil plug
Hand / Auto lever
Display window
Name plate
Oil plug
Side hand wheel

rotork IQ Series Specifications

General

Type	Electric Valve Actuator
Control	On/Off, Modulating
Power Supply	Single-phase, Three-phase
Torque Range	14 Nm to 3, 000 Nm
Environmental Protection	IP68
Network Communication	HART, Foundation Fieldbus, Modbus, Profibus
Data Logging	Yes
Diagnostic Capabilities	Yes
Display	LCD
Ambient Temperature Range	-30°C to +70°C
Certifications	ATEX, IECEx, CSA
Local Controls	Local control via selector switches and push buttons
