rotork Mk3 - Test Set up for FD

Appendix
Publication PUB089-005-00_0618 101 of 116
E.2 Test set up for FD_...._ACTIVE:
The easiest alarm to raise is the ‘unavailable for Remote Control’ alarm. This will be active if the
actuator control knob is set to Local or Local Stop. The picture below shows the control knob in the
remote position which will show no alarm:
For the basic test, only the FD_FAIL_MAP will be set to enable the activation of the FD_FAIL_ACTIVE
polling alarm. The settings are made as follows:

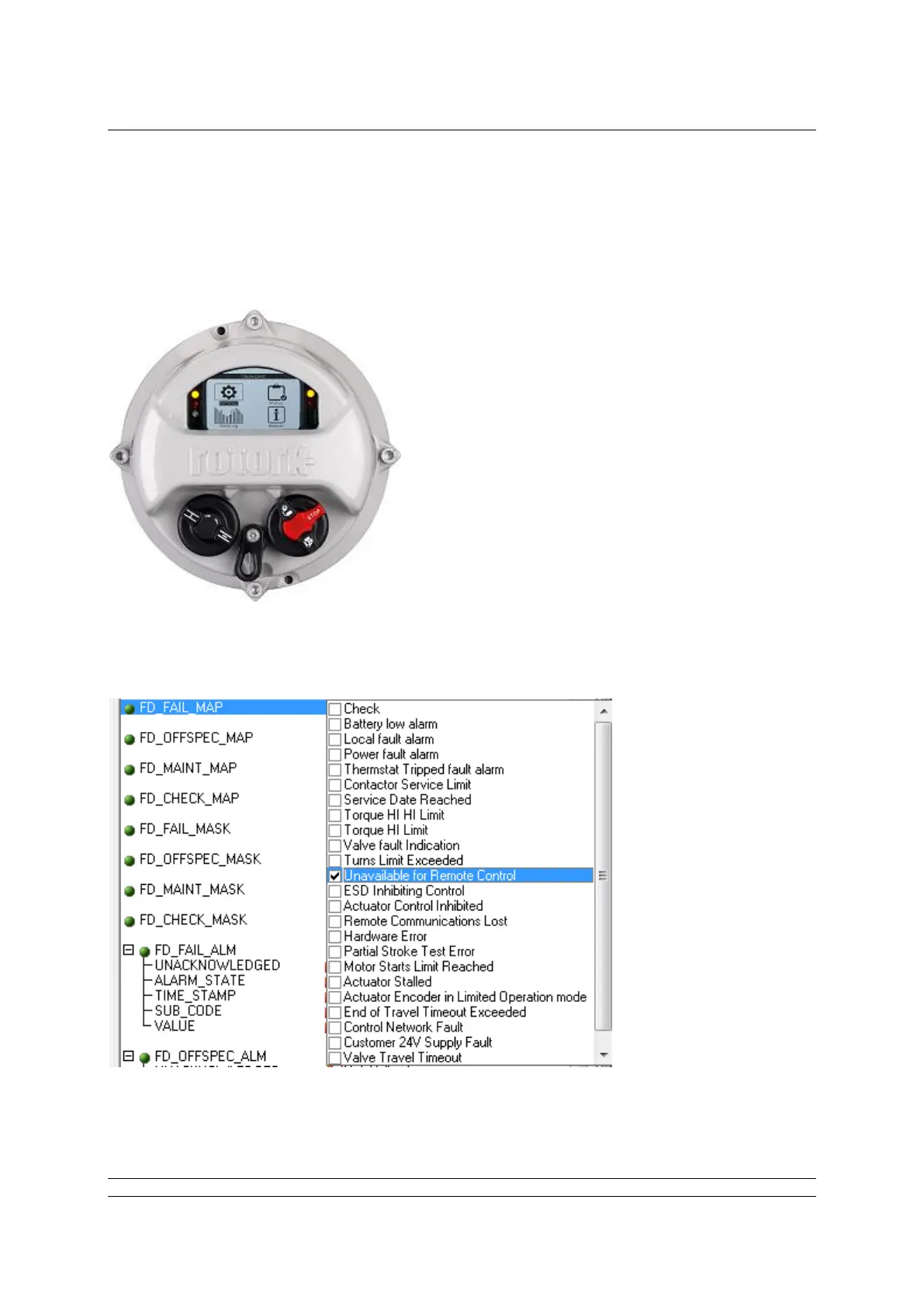

Fig E.4: The front of an IQ3/IQT3
showing actuator control knobs
Fig E.5: Setting the “Unavailable for remote control” alarm.
