E.3 Test set up for FD_...._ALM:
To enable the broadcast alarms (FD_FAIL_ALM) the FD_FAIL_PRI will need to be set up with a
priority level.
The setting is made as shown:
Once this setting is made the alarm is able to be broadcast and the following is shown in the
FD_FAIL_ALM parameter:
When the alarm condition is removed the following is shown:

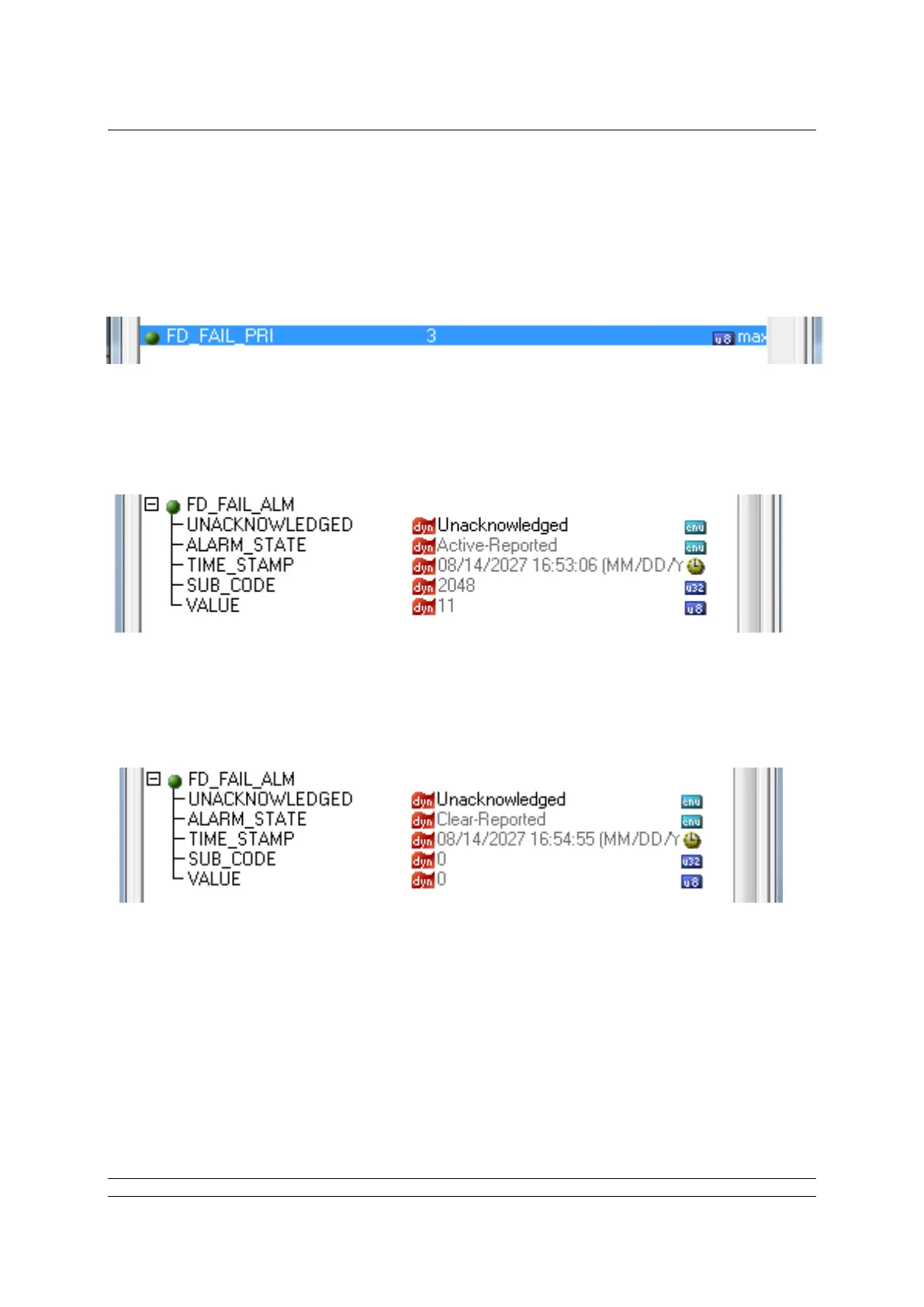

Fig E.8: Setting the priority level.
Fig E.9: Alarm state reported.
Fig E.10: Alarm state cleared.
