Foundation Fieldbus CP Option Card Technical Manual
80 of 116 Publication PUB089-005-00_0618
Other control parameters can be both viewed and modified. Ideally any changes should still be
checked with an FF configuration tool to ensure optimum actuator and network compatibility. Figures
8.2 and 8.3, below, illustrate the access route through the actuator menu screens to reach the settings
that affect the TB in the FF CP card.

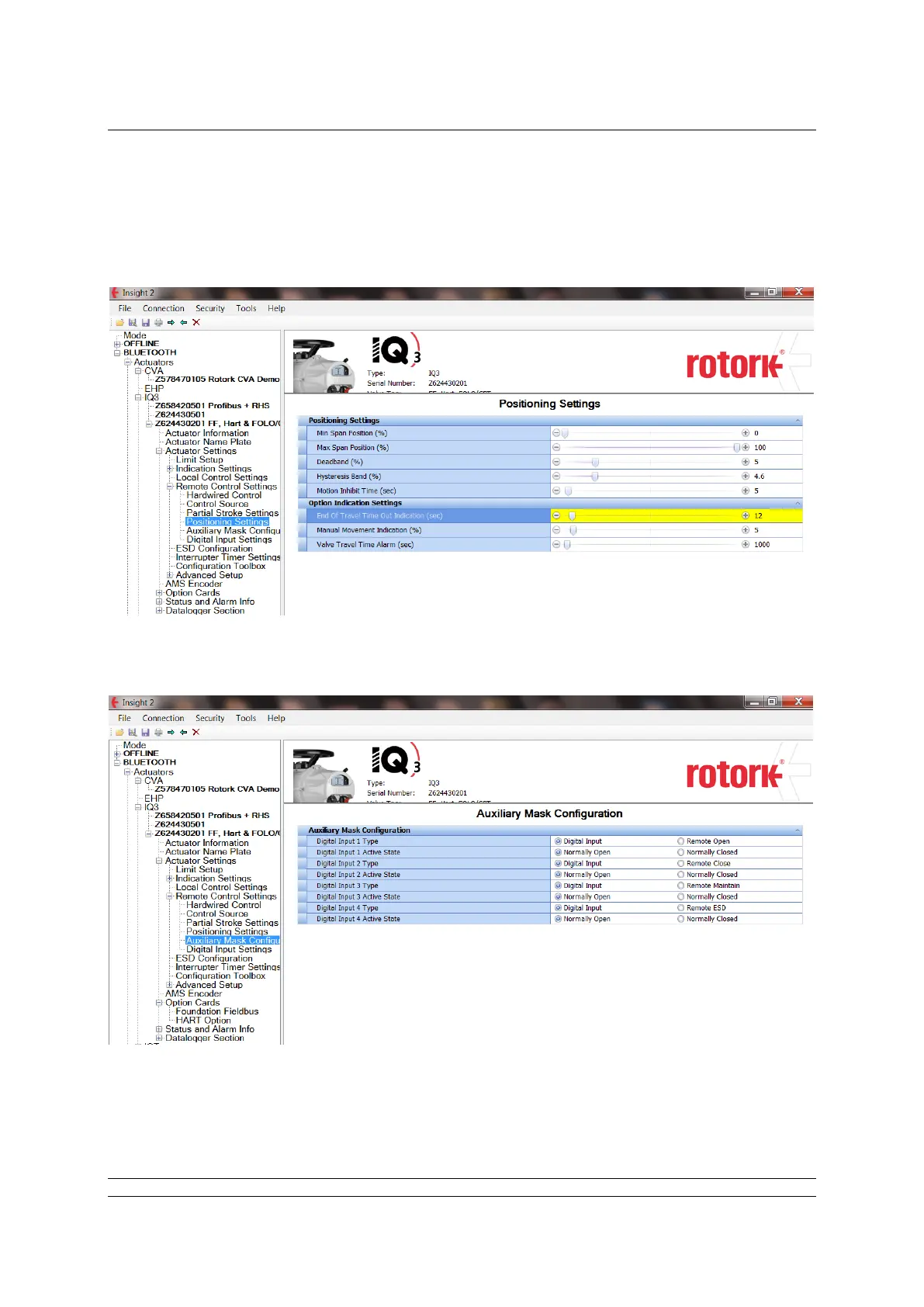

Fig 8.3: Actuator auxiliary input mask settings.
Fig 8.2: Actuator positioning settings.
