Familiar tuning constants can be seen in this dialogue block
together with others specific to this implementation of a PID
block.
For full information on the operation, configuration and tuning of
PID loops, all the relevant loop component manufacturer’s
information should be referred to.

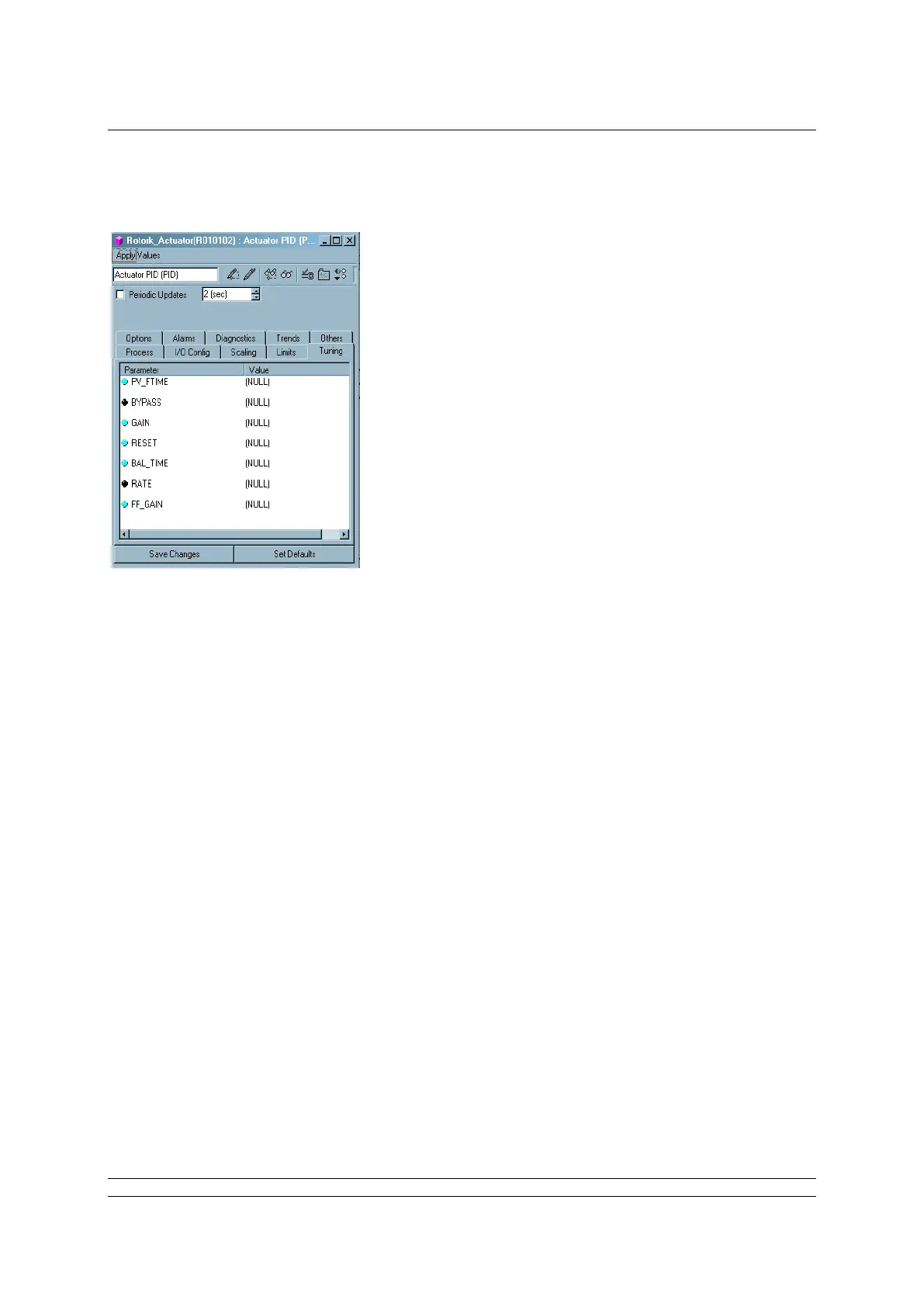

Fig C.4: The PID block’s tuning parameters
