2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION A – DISASSEMBLY
1316-RHD-AA 12152016 26 800.59.ROUSH

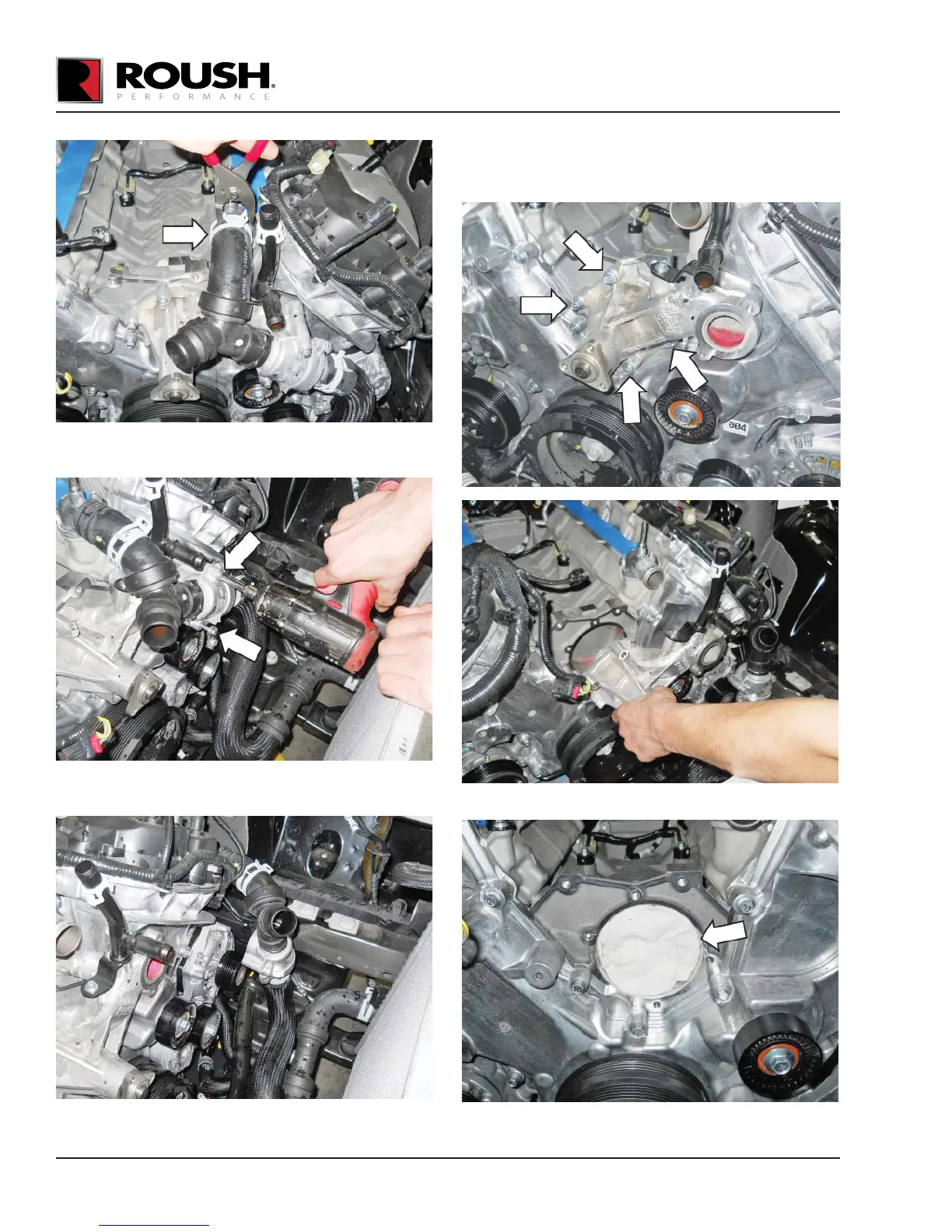

60. Remove the two (2) bolts from the thermostat
housing (8 mm socket).
61. Remove the thermostat housing assembly and set
it aside.
62. Remove the four (4) water pump mounting bolts
(10 mm socket) and remove the water pump. Set
both aside for re-use.
63. Place a clean towel in the water pump inlet cavity.
To Next Page
