2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 38 800.59.ROUSH

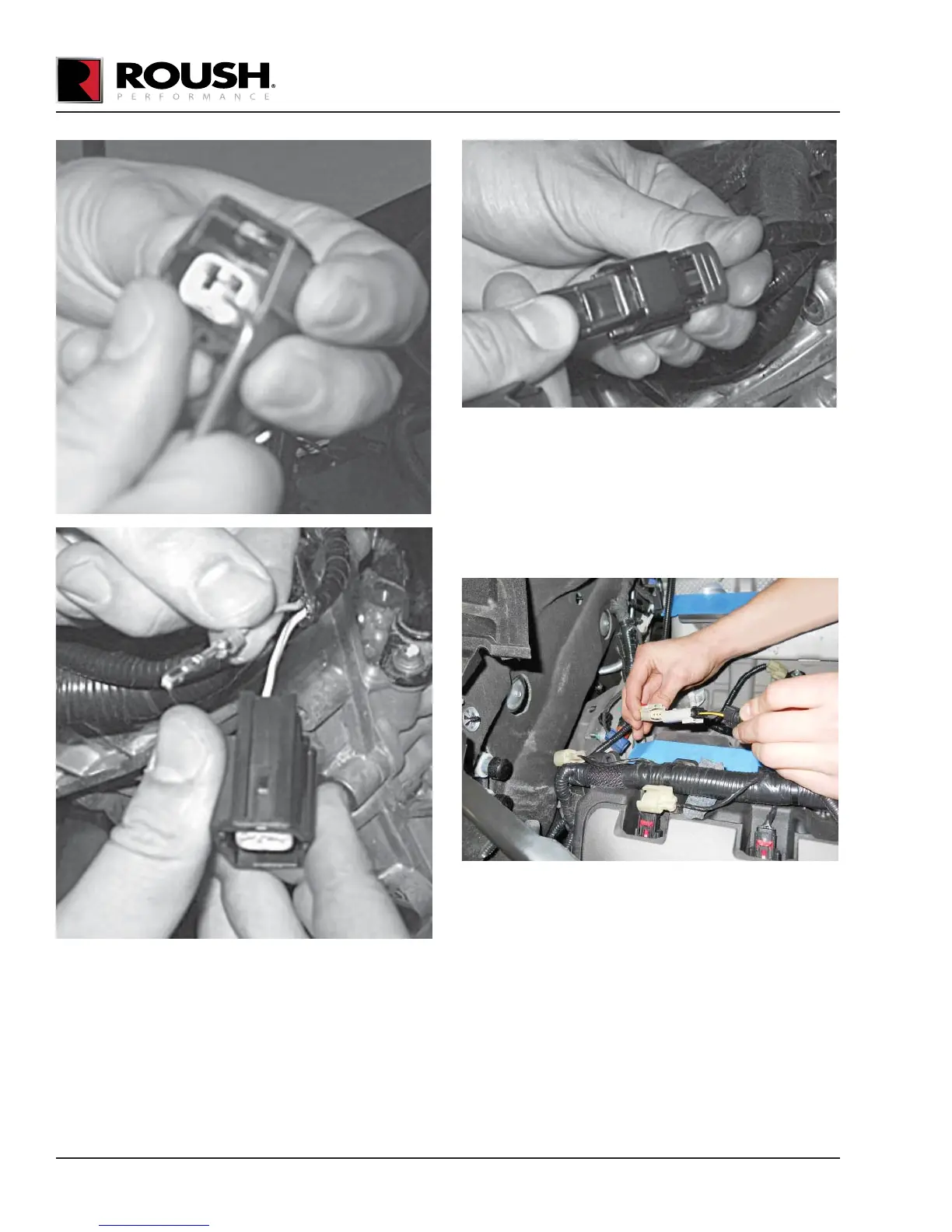

3. Connect the evaporative emissions canister purge
valve extension harness (13119G866) to the newly
installed connector. The wire colors on each side
of the connector pair should align. Route the
harness along the main wiring harness to the rear
of the passenger side cam cover. Use tape or zip
ties to secure the extension harness to the main
harness.
AIR CHARGE TEMPERATURE (ACT)
WIRING
1. Locate the IMRC sensor connector (light grey) at
the rear of the passenger side cylinder head.
2. Connect the IMRC sensor connector into the ACT
wiring harness (1315-12A690), found in Hardware
Kit E (1315-TVSHKE).
3. Route the extension wiring harness to the RH side
cylinder head.
4. Install the connector block (1315-14A464), found
in Hardware Kit E (1315-TVSHKE), into the IMRC
3-pin sensor connector (dark grey) located at the
rear of the driver side cylinder head.
