2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 30 800.59.ROUSH

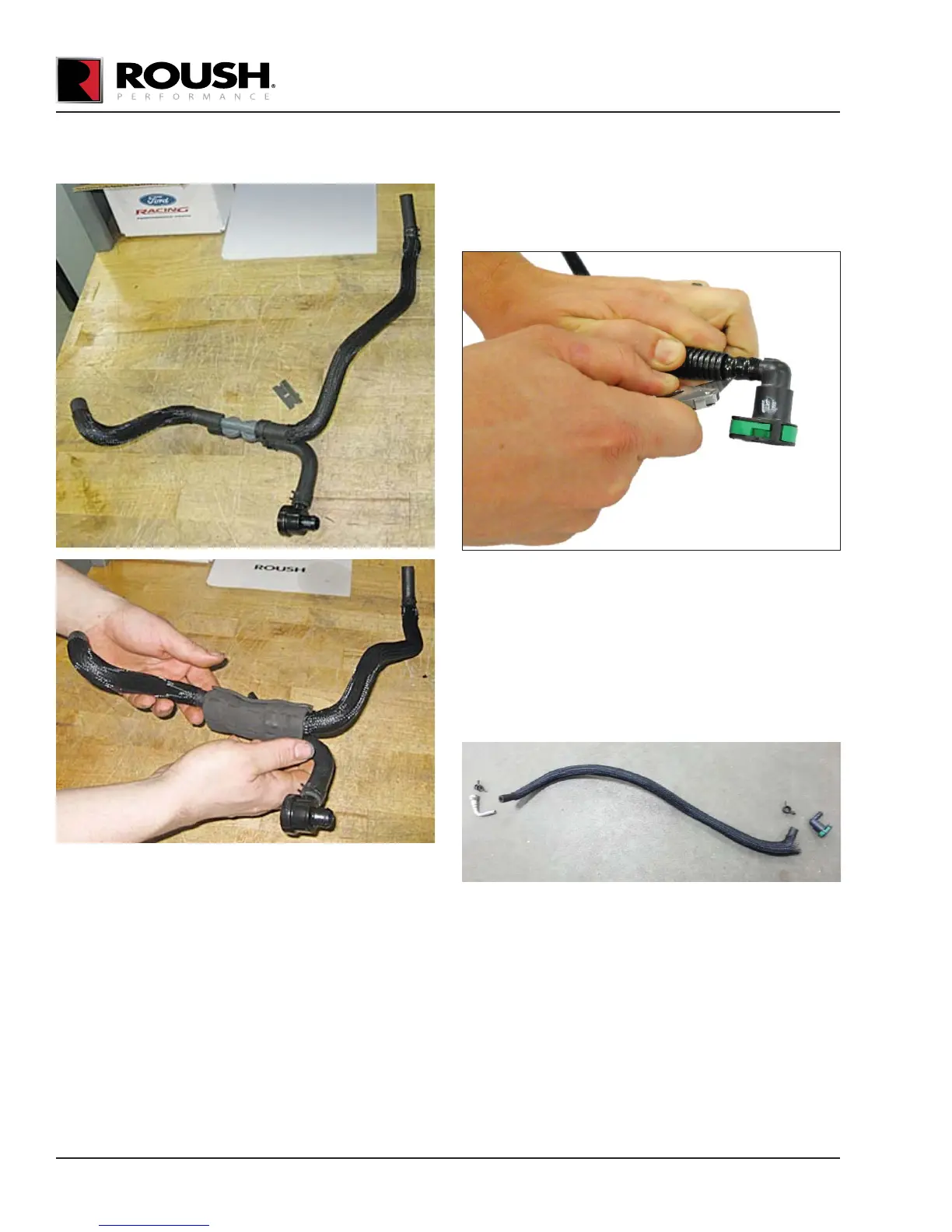

12. Re-install the foam on the brake aspirator
assembly as shown.
EVAPORATIVE EMISSIONS CANISTER
PURGE LINE
1. Remove the convolute and carefully cut the quick
connect ttings from both ends of the old EECPV
line.
2. Install the protective hose sleeve
(1150-18K579SLV) found in Hardware Kit D
(1315-TVSHKD) over the length of the hose (1315-
9G272).
3. Install one (1) clamp (7329K11) found in Hardware
Kit D (1315-TVSHKD) onto each end of the new
line. Install the quick connect ttings on the ends
of the new line using the orientation shown.
Secure the ttings with the clamps.
K-BRACE MODIFICATION
1. Mark the K-brace where it meets the windshield
wiper close-out panel.
2. Modify the K-brace as shown below. Perform
modi cations with K-brace out of vehicle. Discard
the right hand side of the K-brace (cut on the red
line).
