2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION C – SUBASSEMBLY
1316-RHD-AA 12152016 51 800.59.ROUSH

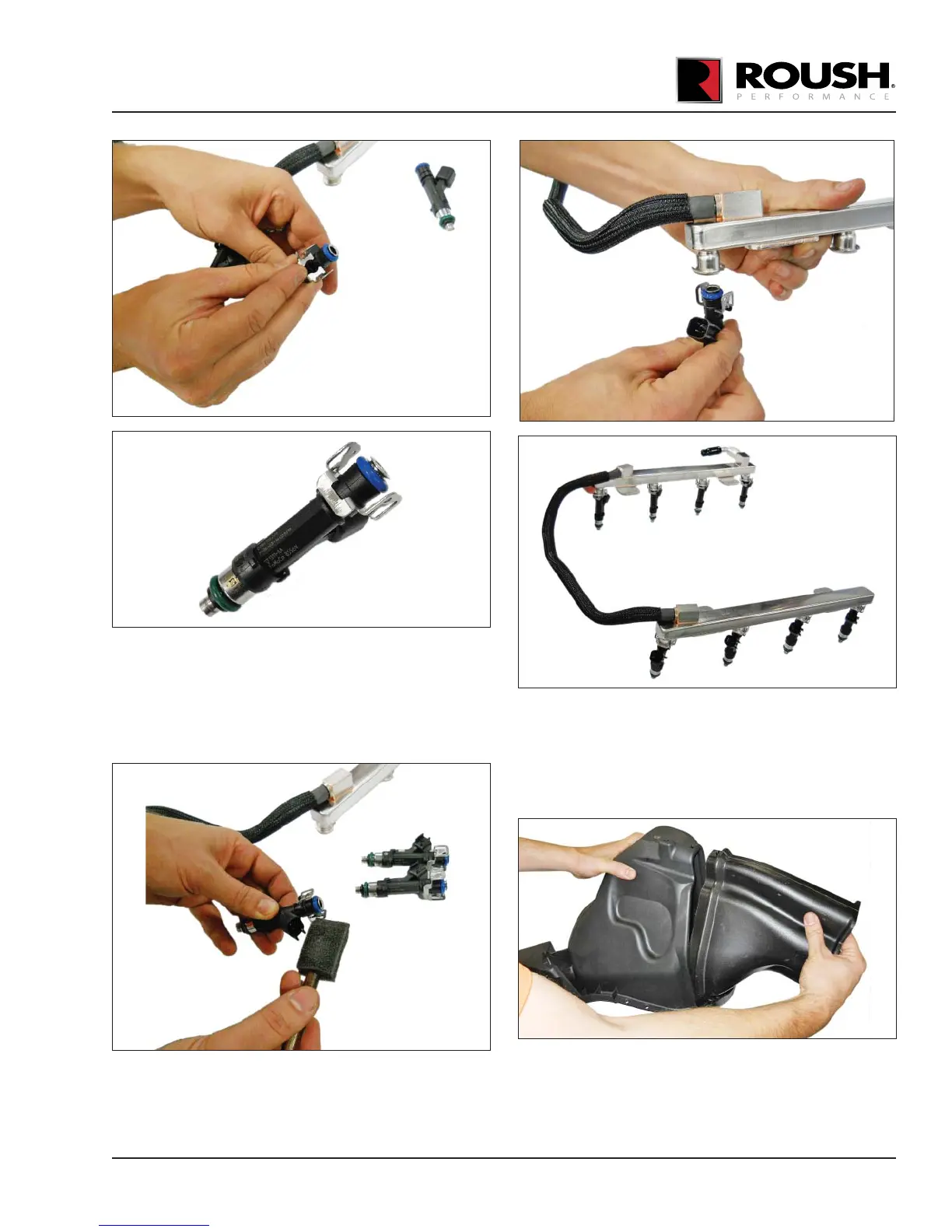

2. Apply assembly lube to the injector O-rings and
install the injectors into the new fuel rail (1315-
19F792).
NOTE: Verify that the anti-rotation clips are properly
aligned and fully engaged into the fuel rail injector
cups.
AIRBOX ASSEMBLY
1. Insert the dirty air duct (1315-9F763) and install it
into the lower airbox tray (1315-9A612) as shown.
NOTE: These may be separated if needed to ease
installation to the vehicle.
2. Insert the two (2) J-clips (W520823) from
Hardware Kit A (1315-TVSHKA) onto the airbox
tray as shown.
