2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 32 800.59.ROUSH
7. Use the battery closeout panel (1316-18A344) as
a guide when marking the battery closeout panel.
Cut the battery cover on the marked line.

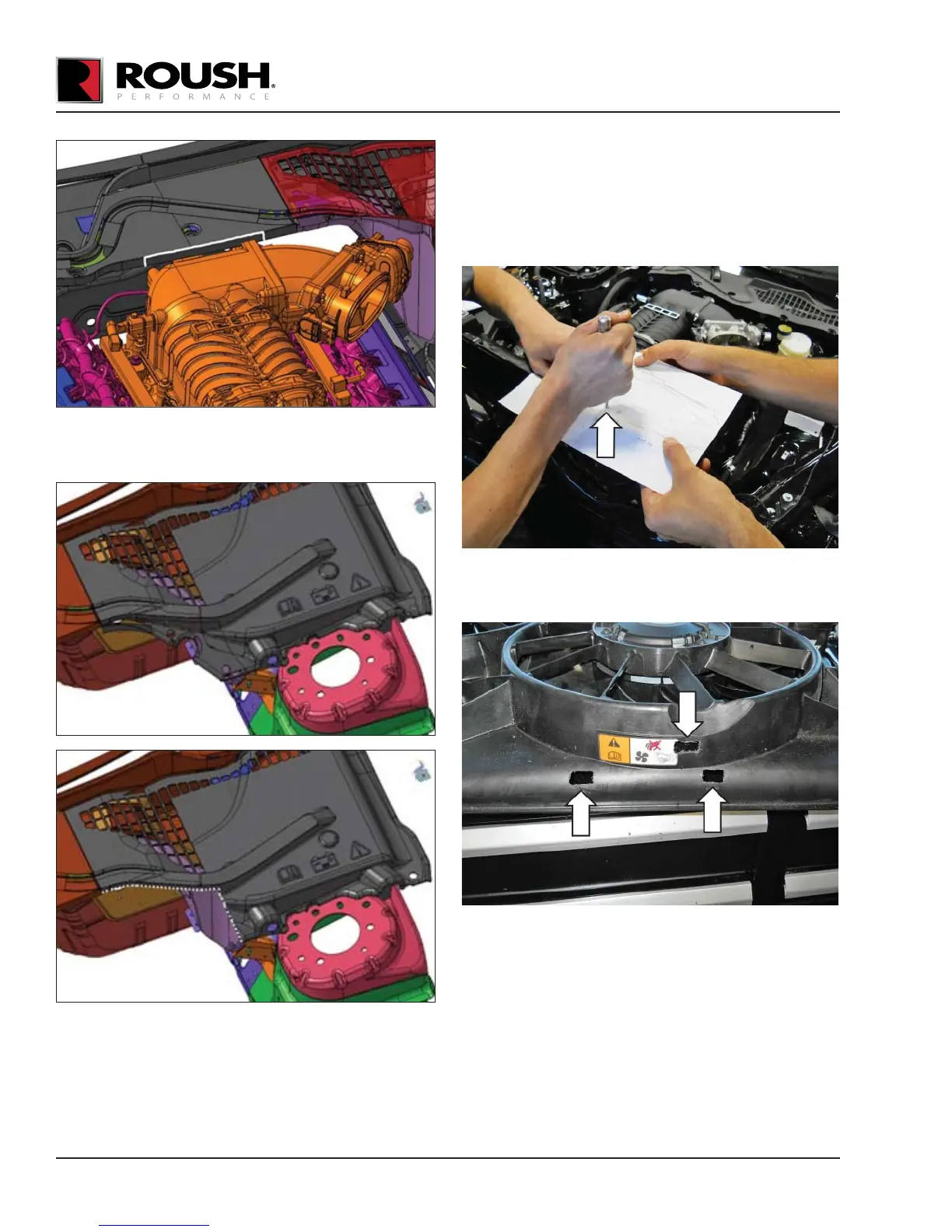

ELECTRIC FAN SHROUD MODIFICATION
1. Place the IC degas bottle template
(1315-DGSTMPL) on the top of the fan shroud
and align it with the shroud features. Use a spring-
loaded punch or other suitable tool to mark the
fan shroud for modi cation. Remove the template.
2. Use a dremel or other suitable tool to remove
material in the three (3) rectangular areas marked
as well as the two (2) holes.
3. Install two (2) J-clips (N623332-M6) found in
Hardware Kit H (1315-TVSHKH) in the two (2)
areas on the edge of the shroud.
