2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION C – SUBASSEMBLY
1316-RHD-AA 12152016 50 800.59.ROUSH

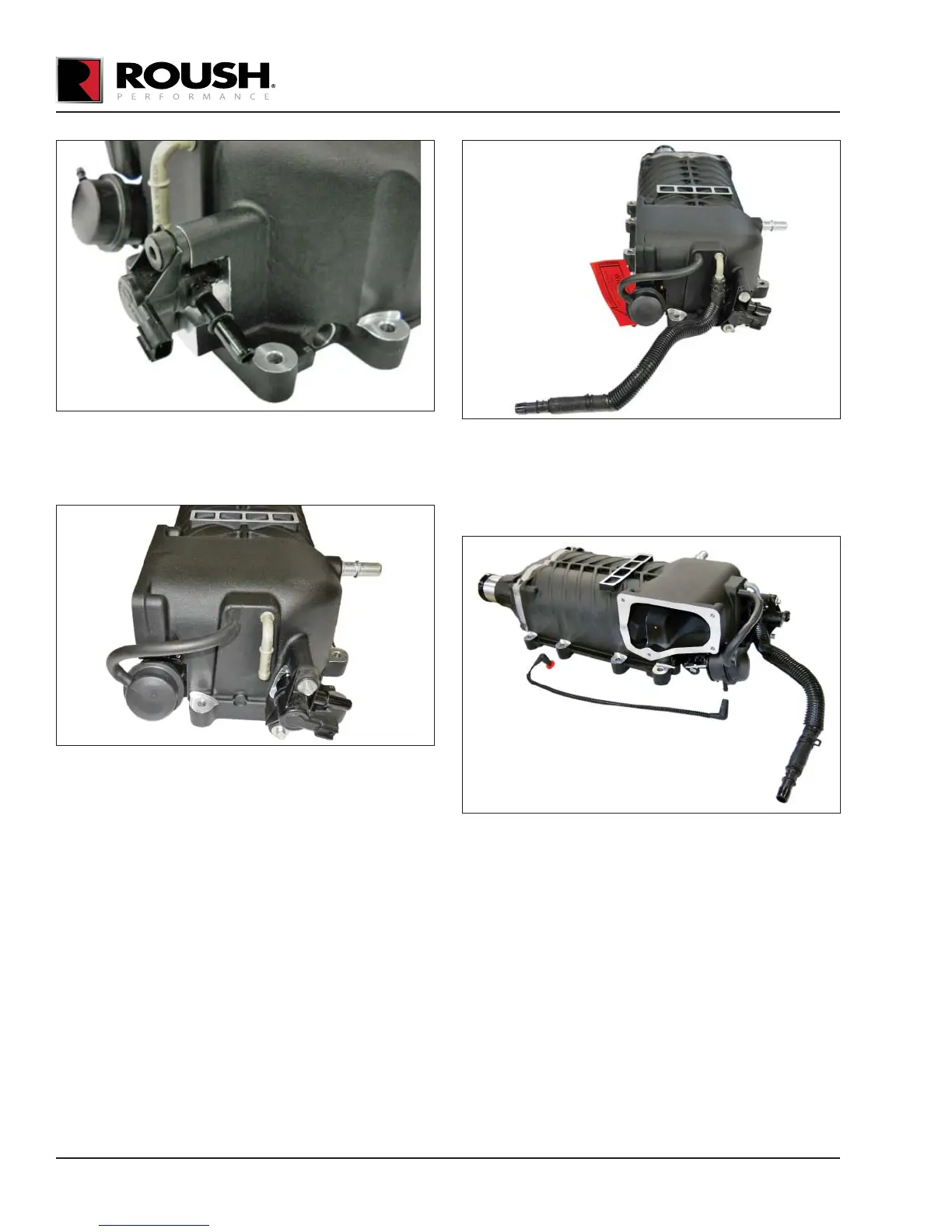

3. Connect the supercharger boost bypass actuator
hose (1315-9E498) found in Hardware Kit D
(1315-TVSHKD) to the top port on the actuator
and route to the small port on the supercharger.
4. Connect the brake boost hose to the 90-degree
tube at the rear of the supercharger and secure
it with the clamp. This is “hose 1” created from
the brake boost vacuum and aspirator assembly
modi cation process.
5. Connect the supercharger bypass reference
vacuum line (7R3V-9E498) to the bottom tting on
the supercharger bypass actuator.
NOTE: This line will later be routed underneath the
heater hose and fuel line.
6. Install the supercharger badge (1315-6F066BDG)
onto the top of the supercharger.
FUEL RAIL ASSEMBLY
1. Carefully install the eight (8) new anti-rotation
fuel injector clips (1311-9C995) onto the new fuel
injectors (13119F593K fuel injector kit).
