2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 64 800.59.ROUSH

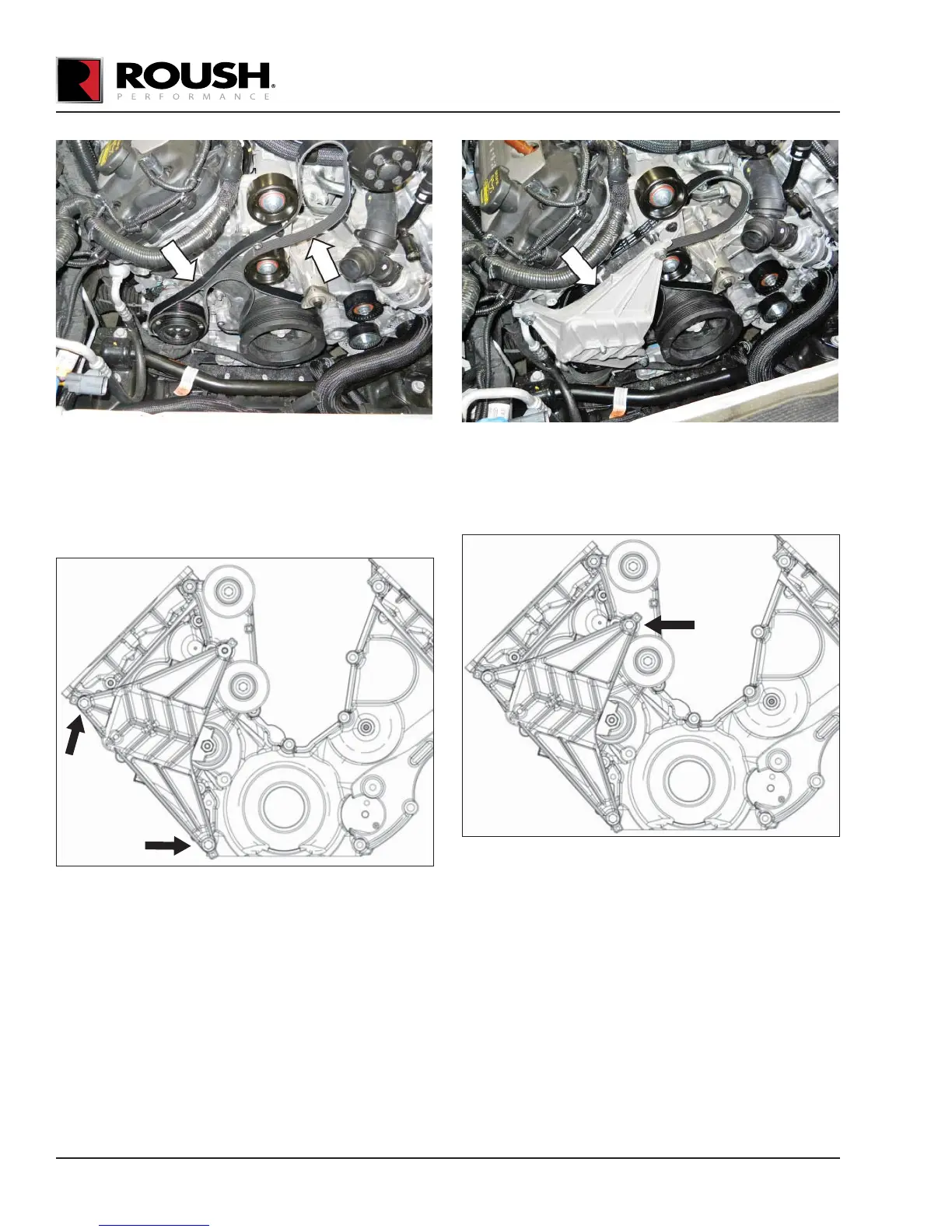

9. Loosely install the FEAD tensioner bracket
assembly (13118B603) onto the front cover using
two (2) M8 x 1.25 x 120 mm bolts (N811329)
found in Hardware Kit C (1315-TVSHKC).
NOTE: Install the lowest bolt into the casting prior to
positioning in vehicle, in order to clear the sway bar.
10. Install one (1) M8 x 1.25 x 41 mm bolt (W705128)
found in Hardware Kit C (1315-TVSHKC), to
fasten the tensioner bracket to the upper FEAD
bracket. Torque all three (3) tensioner bracket
bolts to 25 Nm.
11. Using a 17 mm socket, rotate the new tensioner
clockwise to install the belt on to the supercharger
pulley. Inspect each pulley to ensure the belt is
properly seated. Ensure all supercharger pulley
bolts have been torqued to 10 Nm.
