2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 63 800.59.ROUSH

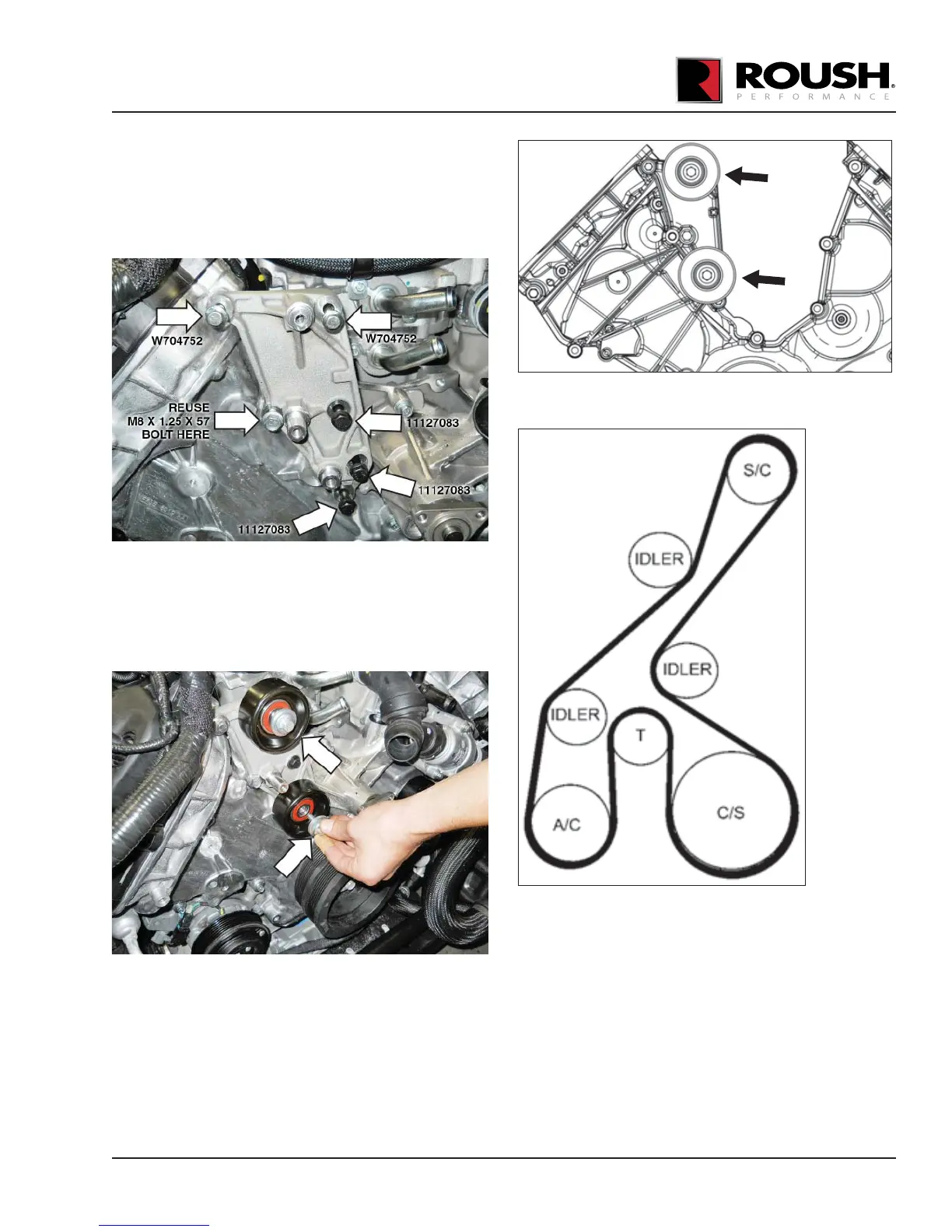

6. Install the upper FEAD bracket (1314-8B653U)
using one (1) M8x1.25x57 bolt (that was removed
in the step 1 of this section), three (3) (black)
M8x1.25x60 bolts (11127083) and two (2)
M8x1.25x84 bolts (W704752) from Hardware Kit C
(1315-TVSHKC). Torque bolts to 25 Nm.
7. Install two (2) idler pulleys (953045) onto the
machined posts of the upper FEAD bracket.
Secure the pulleys using two (2) M8 x 1.25 x 28
mm idler bolts (R18020060) with washers found in
Hardware Kit C (1315-TVHSKC). Torque bolts to
25 Nm (13 mm socket).
8. Route the FEAD belt (K060806) as shown. Do not
route the belt onto the supercharger pulley.
