2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 40 800.59.ROUSH

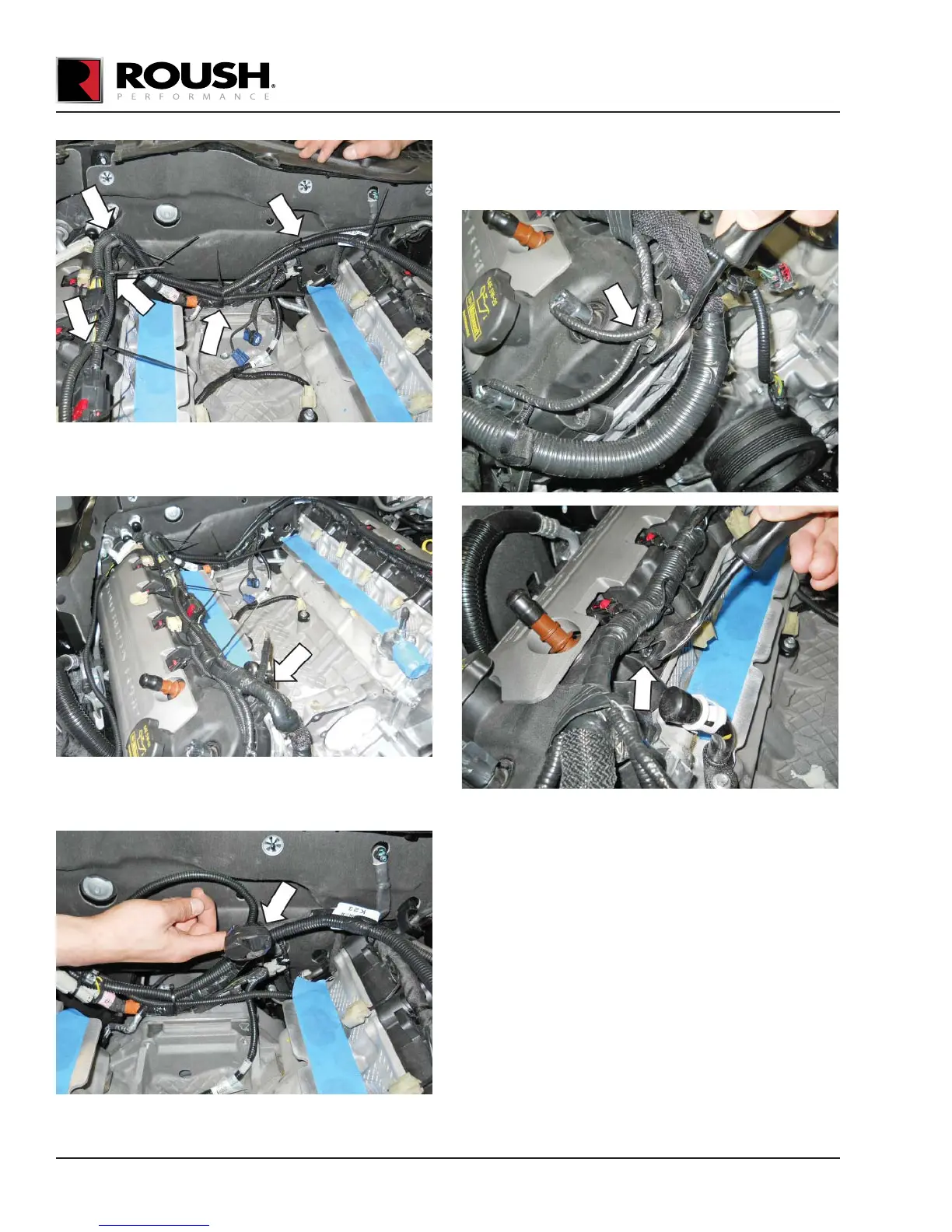

3. When complete, the secured harnesses will look
similar to this. Trim the excess length from the zip
ties.
4. Wrap electrical tape around the two (2) blue
CMCV connectors at the rear of the cylinder head
as shown.
CMCV connectors taped up
ENGINE HARNESS GROUND WIRE
1. Pry up the engine harness retainers at the RH
front and side of the engine.
2. Peel back the insulation at the base of the ground
wire that was attached to the stud on the front
cover. Trim back part of the insulation until the
ground wire is exposed.
