2015-2017 5.0L Mustang Phase 1-2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 37 800.59.ROUSH

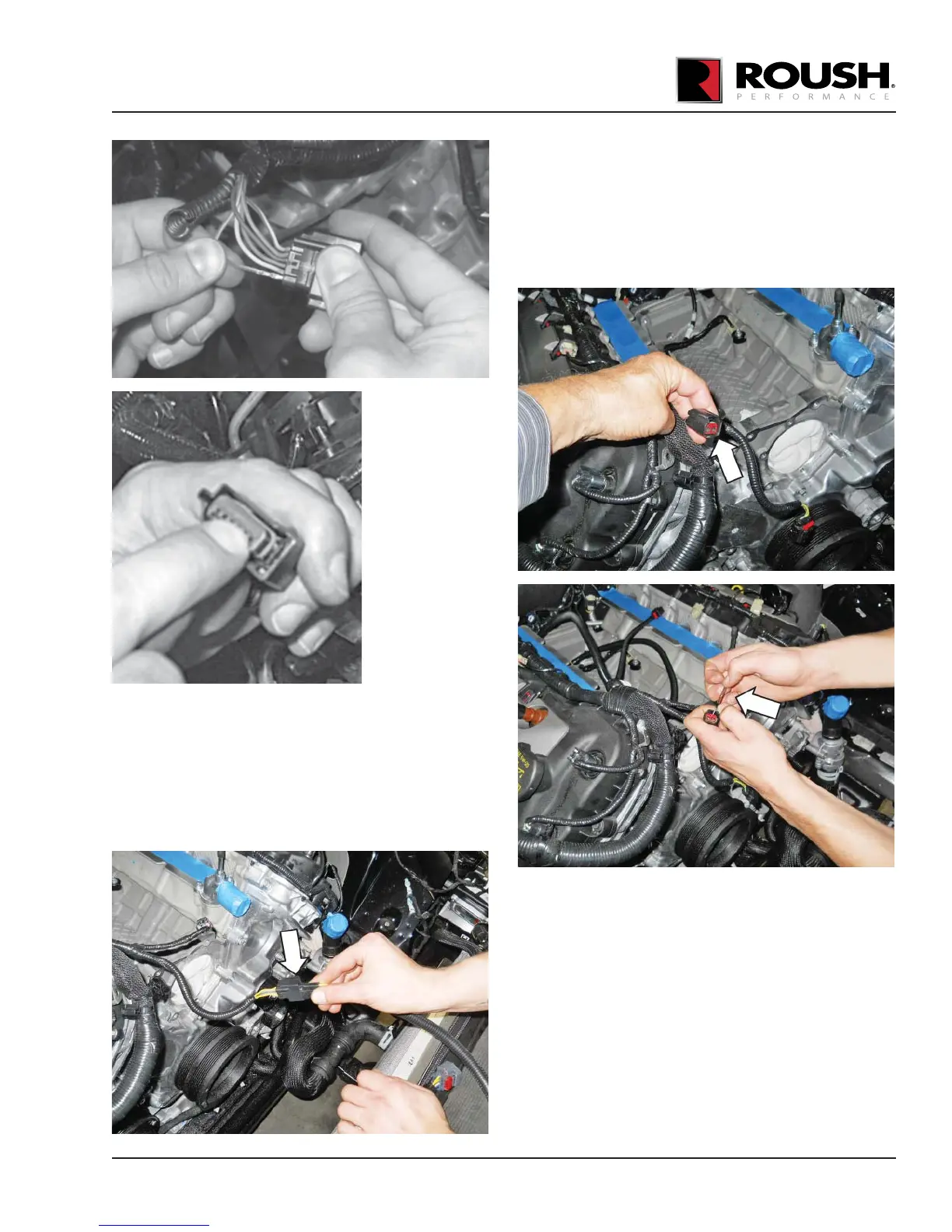

4. Connect the TPS/ETC extension harness
(131114A595) from Hardware Kit E
(1315-TVSHKE) to the newly installed connector.
The wire colors on each side of the connector pair
should align. Route the harness along the main
wiring harness to the rear of the driver side cam
cover. Use tape or zip ties to secure the extension
harness to the main harness.
EVAPORATIVE EMISSIONS CANISTER
PURGE VALVE WIRING
1. Locate the evaporative emissions canister purge
valve electrical connector (2-wire) at the front of
the passenger side cylinder head. Use a proper
de-pinning tool to remove the connector from the
harness.
2. Depress the locking tab and separate the “empty”
female 1 x 2 connector from the evaporative
emissions canister purge valve extension harness
(13119G866). This connector replaces the
connector removed in the previous step. Carefully
pull the white locking tab forward to allow wires to
be installed into the connector. Populate the new
connector such that the white with brown wire is
in position 1 and the green wire is in position 2.
Depress the white locking tab to secure the wires.
