2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 70 800.59.ROUSH

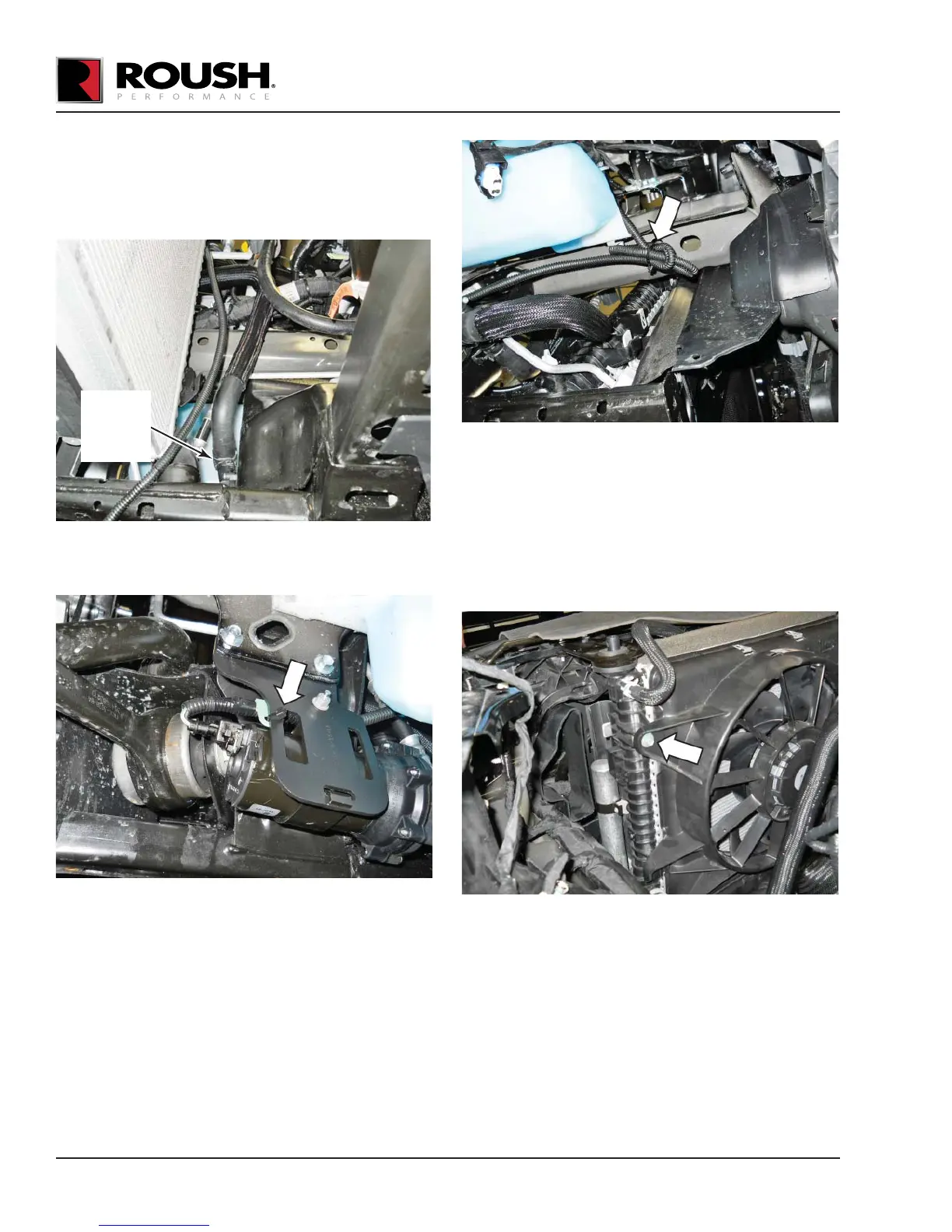

6. Secure the hose to the pump using one (1) clamp
(CT19X12) from Hardware Kit G (1315-TVSHKG).
Secure the hose to the LTR inlet using one
(1) clamp (CT19X12) from Hardware Kit G
(1315-TVSHKG).
CLAMP
SECURING
HOSE TO
IC PUMP
OUTLET
7. Connect the intercooler pump harness electrical
connecter to the intercooler pump and secure it
with a zip tie to the bracket.
8. Collect the excess intercooler pump harness and
secure it with zip ties as needed.
NOTE: Route all intercooler hoses very carefully. It is
critical for intercooler performance that these hoses
are not kinked once installed into the vehicle.
ELECTRIC FAN, INTERCOOLER
RESERVOIR AND HOSES
1. Install the electric fan in position and secure
it with the two (2) mounting bolts previously
removed. Torque to 10 Nm.
