ROUSH 422011 - Route and Connect Heater Outlet Hose; Connect PCV Purge Line to Supercharger; FEAD Assembly

2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 61 800.59.ROUSH

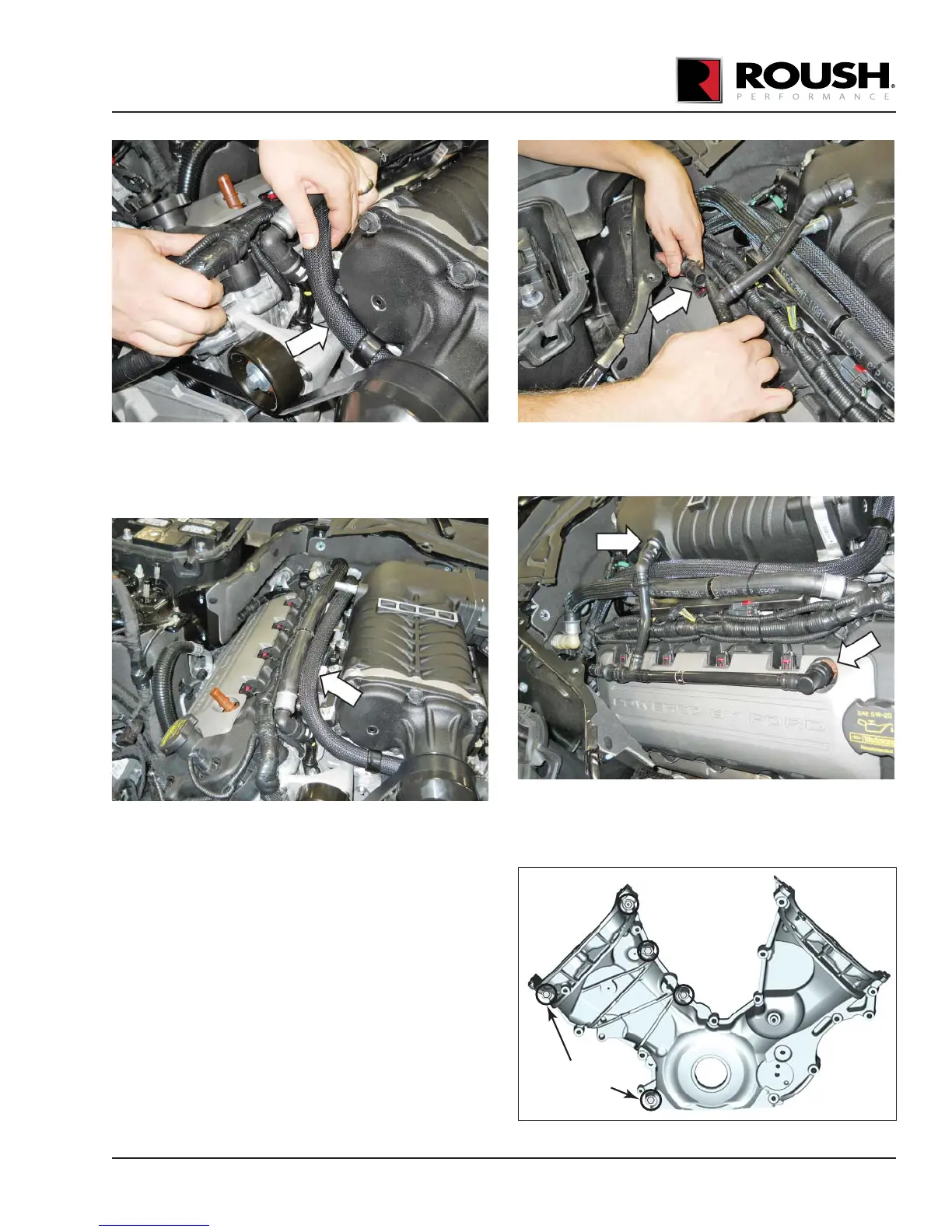

Outlet hose moved to show hose plug underneath
29. Route the hose along the top of the RH fuel rail
and connect it to the top heater core port (inlet) on
the RH  rewall.
30. Secure the heater inlet hose to the new heater
outlet hose assembly with zip ties.
31. Install the end of the PCV purge hose
(13116K817) from the hose section previously
disassembled onto the bottom rear  tting of the
intake manifold. Install the clamp.
32. Connect the PCV purge line (13116K817) to the
PCV valve on the RH cam cover and the port on
the RH side of the supercharger.
FEAD ASSEMBLY
1. Remove the four (4) bolts and one (1) stud from
the front cover as shown.
ONE OF THESE
TWO BOLTS
WILL BE
REUSED
