2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 60 800.59.ROUSH

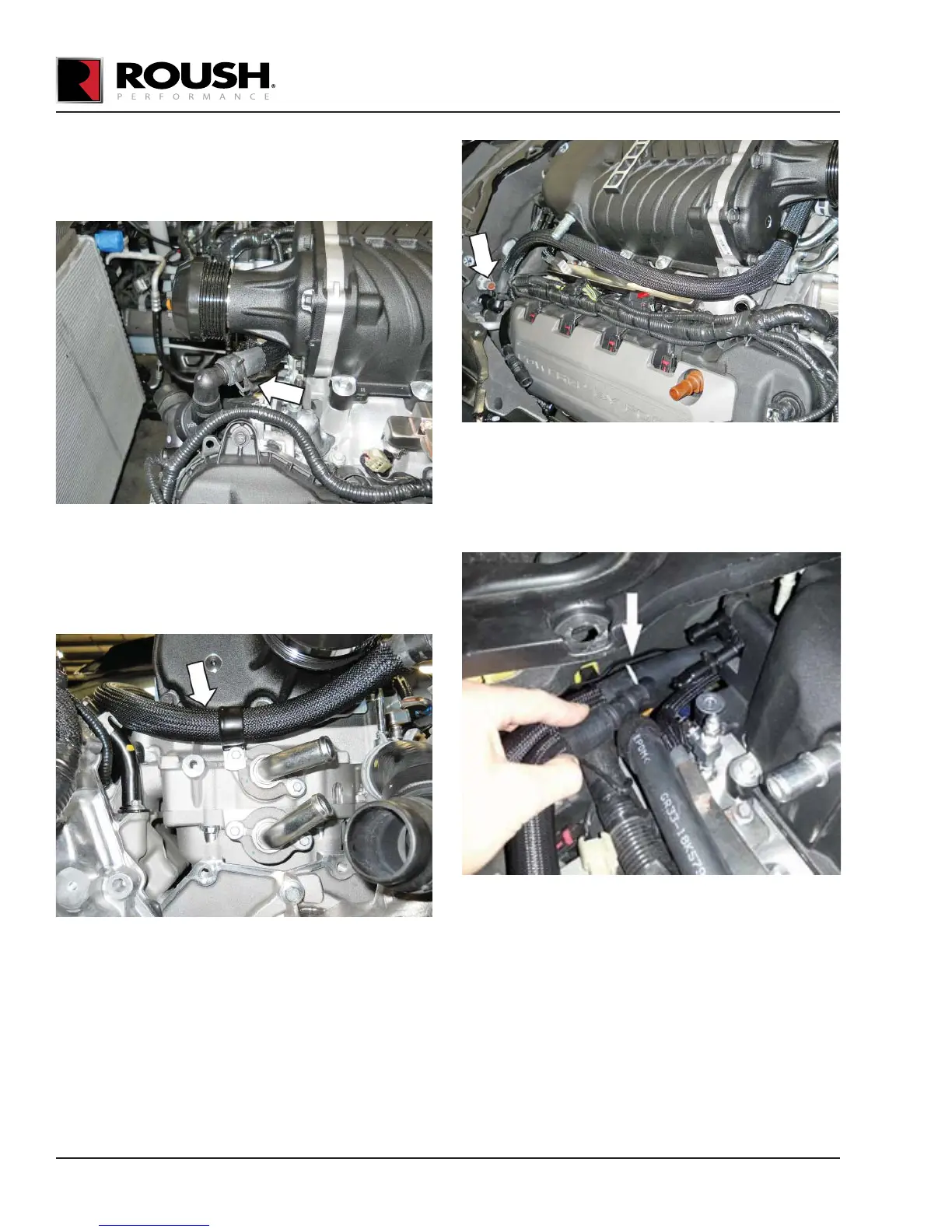

24. Connect the heater hose assembly (1315-18K579)
to the heater tube near the front of the LF cylinder
head. Make sure the connection is pushed on
straight and both locks are engaged.
25. Route the line around the front of the engine
underneath the snout of the supercharger towards
the heater core. Remove the top intercooler tube
bolt and install the P-clamp tab using the fastener
on the intercooler coolant inlet. Torque the inter-
cooler tube bolt to 10 Nm.
26. Route the hose along the RH fuel rail and down to
the heater outlet at the rewall.
27. Modify the rewall end of the heater hose
assembly (1315-18K579). Using the stock heater
hose from the passenger side route it behind the
blower. Cut the line and attach the union to the
heater hose assembly (Note: The white cut line is
the stock heater hose).
28. Install the 424 mm length of protective hose
sleeve (1311-18K579) found in hardware kit D
(1315-TVSHKD) over the RH factory heater hose
and secure with tape on either end of the sleeve.
Reinstall the RH factory heater hose to the tube at
the RH front of the engine.
